MDM-51PH001M7

Active

ITT Cannon, LLC

CABLE ASSY D-MIC-D 51P 457.2MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CABLE ASSY D-MIC-D 51P 457.2MM

Technical Specifications

Parameters and characteristics for this part

...

Part	Length [x]	Length [x]	Number of Positions	Type	Contact Finish	2nd Connector	1st Connector	Shielding	Color	Length	Length	Length	Length
ITT Cannon, LLC MDM-51PH013B	1.22 m	4 ft	51	D-Type Micro-D	Gold	Individual Wire Leads	Plug Male Pins	Unshielded	Individual Yellow
ITT Cannon, LLC MDM-51SH016P-A30			51	D-Type Micro-D	Gold	Individual Wire Leads	Female Sockets Receptacle	Unshielded	Individual Multiple	152.4 mm	6 "	0.5 '
ITT Cannon, LLC MDM-51SH016P			51	D-Type Micro-D	Gold	Individual Wire Leads	Female Sockets Receptacle		Individual Multiple	152.4 mm	6 "	0.5 '
ITT Cannon, LLC MDM-51SH006B-A174-F222	914.4 mm	3 ft	51	D-Type Micro-D	Gold	Individual Wire Leads	Female Sockets Receptacle		Individual Multiple
ITT Cannon, LLC MDM-51PH006M7	914.4 mm	3 ft	51	D-Type Micro-D	Gold	Individual Wire Leads	Plug Male Pins	Unshielded	Individual Multiple
ITT Cannon, LLC MDM-51PH164B			51	D-Type Micro-D	Gold	Individual Wire Leads	Plug Male Pins	Unshielded
ITT Cannon, LLC MDM-51PH003B-A141	457.2 mm	1.5 ft	51	D-Type Micro-D	Gold	Individual Wire Leads	Plug Male Pins	Unshielded	Individual Multiple
ITT Cannon, LLC MDM-51PH003M2	457.2 mm	1.5 ft	51	D-Type Micro-D	Gold	Individual Wire Leads	Male Pins Receptacle		Individual Multiple
ITT Cannon, LLC MDM-51PH041L			51	D-Type Micro-D	Gold	Individual Wire Leads	Plug Male Pins	Unshielded	Individual Multiple	3.05 m			10 ft
ITT Cannon, LLC MDM-51PH001M7	457.2 mm	1.5 ft	51	D-Type Micro-D	Gold	Individual Wire Leads	Plug Male Pins	Unshielded	Individual Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

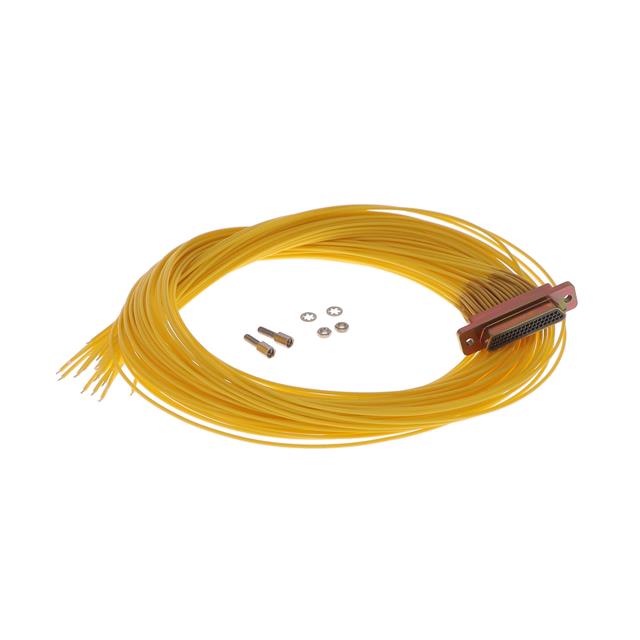

D-Sub Cable Assembly D-Type, Micro-D Yellow, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded

Technical documentation and resources

No documents available
