A15896-02

Laird Technologies - Thermal Materials

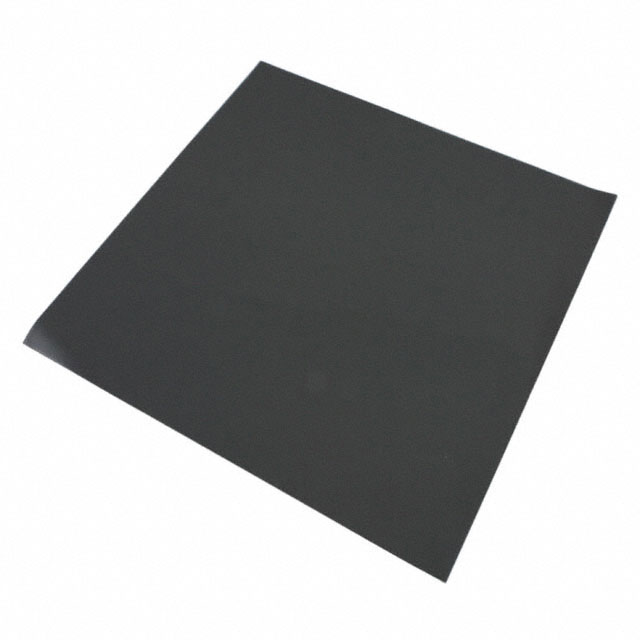

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A15896-02

Laird Technologies - Thermal Materials

THERM PAD 228.6MMX228.6MM GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A15896-02

Adhesive	Tacky - Both Sides
Color	Gray
Material	Silicone
Outline [x]	228.6 mm
Outline [y]	228.6 mm
Shape	Square
Shelf Life	24 Months
Thermal Conductivity	5 W/m-K
Thickness	0.508 mm
Thickness	0.02 in
Type	Gap Filler Pad, Sheet

A15896 Series

Part	Shape	Shelf Life	Thermal Conductivity	Thickness	Thickness	Type	Outline [x]	Outline [y]	Material	Color	Shelf Life Start	Adhesive	Thickness [z]	Thickness [z]	Thickness [custom]
Laird Technologies - Thermal Materials A15896-13	Square	24 Months	5 W/m-K	0.13 in	3.3 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-04	Square	24 Months	5 W/m-K	0.04 in	1.016 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-02	Square	24 Months	5 W/m-K	0.02 in	0.508 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray		Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-17	Square	24 Months	5 W/m-K	0.17 in	4.32 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-11	Square	24 Months	5 W/m-K			Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides	2.79 mm	0.11 in
Laird Technologies - Thermal Materials A15896-19	Square	24 Months	5 W/m-K		4.83 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides			0.19 in
Laird Technologies - Thermal Materials A15896-07	Square	24 Months	5 W/m-K	0.07 in	1.778 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-31	Square	24 Months	5 W/m-K	0.16 in	4.06 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-05	Square	24 Months	5 W/m-K	0.05 in	50 mils	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-03	Square	24 Months	5 W/m-K	0.03 in	0.762 mm	Gap Filler Pad Sheet	228.6 mm	228.6 mm	Silicone	Gray	Date of Shipment	Tacky - Both Sides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.74
		10	$ 72.51
		25	$ 69.13
		50	$ 66.67
		100	$ 64.30

Description

General part information

A15896 Series

Thermal Pad Gray 228.60mm x 228.60mm Square Tacky - Both Sides
