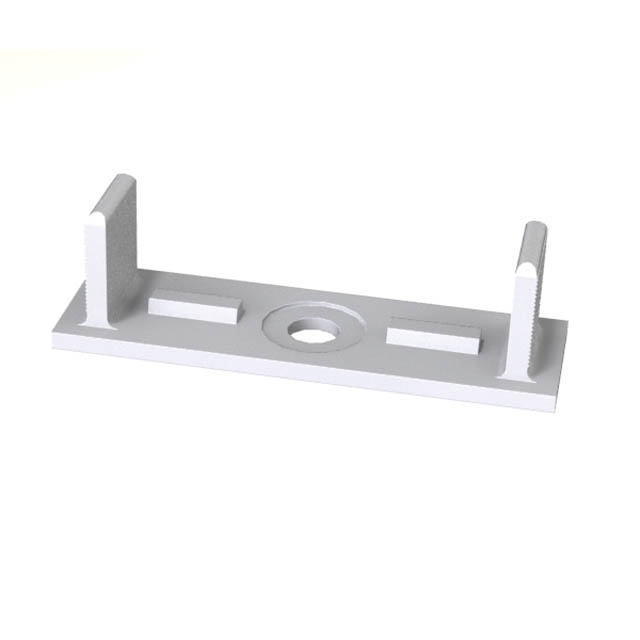

FCRC-21B-6

Active

Essentra Access Solutions

CBL CLIP FLAT NATURAL FASTENER

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP FLAT NATURAL FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	FCRC-21B-6

Color	Natural
Height [z]	20.96 mm
Height [z]	0.825 in
Length	75.69 mm
Length [x]	2.98 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fastener
Opening Size [custom]	2.55 in
Opening Size [custom]	64.77 mm
Panel Hole Size	0.218 in
Panel Hole Size	5.54 mm
Screw Size	#12
Screw Size	M5
Type	Flat, Clip
Type Attributes	Base
Width	15.88 mm
Width	0.625 in

Part	Opening Size [custom]	Opening Size [custom]	Length	Length	Type Attributes	Material Flammability Rating	Screw Size	Screw Size	Type	Height [z]	Height [z]	Panel Hole Size	Panel Hole Size	Material	Color	Mounting Type	Width	Width	Length [x]	Adhesive	Opening Size	Opening Size [z]	Width [y]	Width [y]
Essentra Access Solutions FCRC-19B-6	58.67 mm	2.31 in	2.72 "	69.09 mm	Base	UL94 V-2	#12	M5	Clip Flat	20.96 mm	0.825 in	0.218 in	5.54 mm	Polyamide (PA66) Nylon 6/6	Natural	Fastener	15.88 mm	0.625 in
Essentra Access Solutions FCRC-21B-6	64.77 mm	2.55 in		75.69 mm	Base	UL94 V-2	#12	M5	Clip Flat	20.96 mm	0.825 in	0.218 in	5.54 mm	Polyamide (PA66) Nylon 6/6	Natural	Fastener	15.88 mm	0.625 in	2.98 "
Essentra Access Solutions FCRC-21B-6A-RT	64.77 mm	2.55 in		75.69 mm	Base	UL94 V-2			Clip Flat	20.96 mm	0.825 in			Polyamide (PA66) Nylon 6/6	Natural	Adhesive	15.88 mm	0.625 in	2.98 "	Acrylic Based (RMS-15)
Essentra Access Solutions FCRC-26B-6A-RT				92.96 mm	Base	UL94 V-2			Clip Flat	20.96 mm	0.825 in			Polyamide (PA66) Nylon 6/6	Natural	Adhesive	15.88 mm	0.625 in	3.66 in	Acrylic Based (RMS-15)	82.3 mm	3.24 in
Essentra Access Solutions FCRC-19C				74.17 mm	Cover Locking	UL94 V-2			Clip Flat					Polyamide (PA66) Nylon 6/6	Natural	Adhesive Fastener			2.92 "				16 mm	0.63 "
Essentra Access Solutions FCRC-13C					Cover Locking	UL94 V-2			Clip Flat					Polyamide (PA66) Nylon 6/6	Natural	Adhesive Fastener							16 mm	0.63 "
Essentra Access Solutions FCRC-26B-4A-RT				92.96 mm	Base	UL94 V-2			Clip Flat	14.6 mm	0.575 in			Polyamide (PA66) Nylon 6/6	Natural	Adhesive	15.88 mm	0.625 in	3.66 in	Acrylic Based (RMS-15)	82.3 mm	3.24 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Flat Natural Fastener 2.550" (64.77mm)
