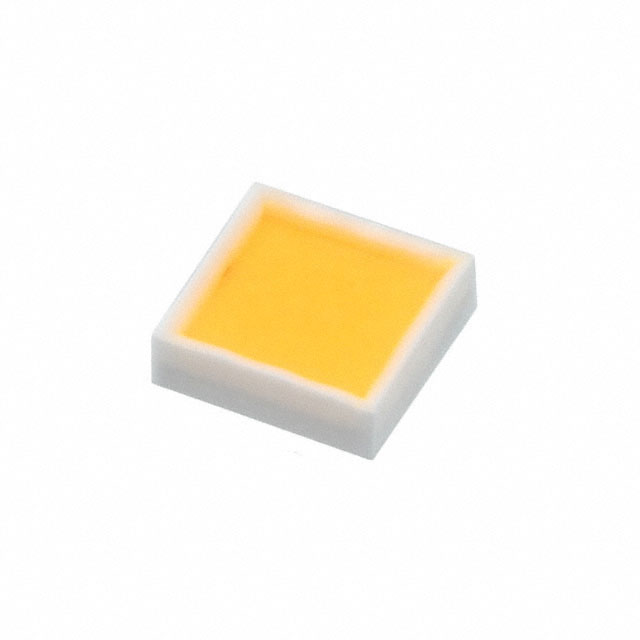

MHBAWT-0000-000C0UB435G

Active

Cree LED

LED XLAMP WARM WHT 3500K SMD

Deep-Dive with AI

Search across all available documentation for this part.

MHBAWT-0000-000C0UB435G

Active

Cree LED

LED XLAMP WARM WHT 3500K SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MHBAWT-0000-000C0UB435G

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	700 mA
Current - Test	480 mA
Flux @ 85°C, Current - Test	425 lm
Flux @ 85°C, Current - Test [Max]	440 lm
Flux @ 85°C, Current - Test [Min]	410 lm
Height - Seated (Max) [Max]	1.61 mm
Height - Seated (Max) [Max]	0.063 in
Lumens/Watt @ Current - Test	98 lm/W
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Thermal Resistance of Package	5.5 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	9 V

MHBAWT Series

...

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CCT (K)	Flux @ 85°C, Current - Test	Current - Max [Max]	Color	Lumens/Watt @ Current - Test	Mounting Type	Package / Case	Package / Case	Viewing Angle	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Thermal Resistance of Package	CRI (Color Rendering Index)	Current - Test	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED MHBAWT-0000-000C0UC240G	1.61 mm	0.063 in	4000 K	458 lm	700 mA	Neutral White	106 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	480 mA	9 V
Cree LED MHBAWT-0000-000N0UA230H	1.61 mm	0.063 in	3000 K	343 lm	175 mA	Warm White	79 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	120 mA	36 V	355 lm	330 lm
Cree LED MHBAWT-0000-000F0UB240H	1.61 mm	0.063 in	4000 K	395 lm	350 mA	Neutral White	91 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	240 mA	18 V
Cree LED MHBAWT-0000-000N0UA430H	1.61 mm	0.063 in	3000 K	368 lm	175 mA	Warm White	85 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	120 mA	36 V
Cree LED MHBAWT-0000-000C0UB457E	1.61 mm	0.063 in	5700 K	425 lm	700 mA	Cool White	98 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	480 mA	9 V	440 lm	410 lm
Cree LED MHBAWT-0000-000N0UA230G	1.61 mm	0.063 in	3000 K	343 lm	175 mA	Warm White	79 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	120 mA	36 V	355 lm	330 lm
Cree LED MHBAWT-0000-000C0UB435G	1.61 mm	0.063 in	3500 K	425 lm	700 mA	Warm White	98 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	480 mA	9 V	440 lm	410 lm
Cree LED MHBAWT-0000-000N0HC427G	1.61 mm	0.063 in	2700 K	493 lm	175 mA	Warm White	114 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	80	120 mA	36 V	510 lm	475 lm
Cree LED MHBAWT-0000-000F0UA435G	1.61 mm	0.063 in	3500 K	368 lm	350 mA	Warm White	85 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	90	240 mA	18 V
Cree LED MHBAWT-0000-000C0HD465E	1.61 mm	0.063 in	6500 K	570 lm	700 mA	Cool White	132 lm/W	Surface Mount	2020	5050 Metric	115 °	0.197 in	5 mm	0.197 "	5 mm	5.5 °C/W	80	480 mA	9 V	590 lm	550 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.45

Description

General part information

MHBAWT Series

LED Lighting Xlamp® MHB-A White, Warm 3500K 3-Step MacAdam Ellipse 9V 480mA 115° 2020 (5050 Metric)

Documents

Technical documentation and resources

No documents available
