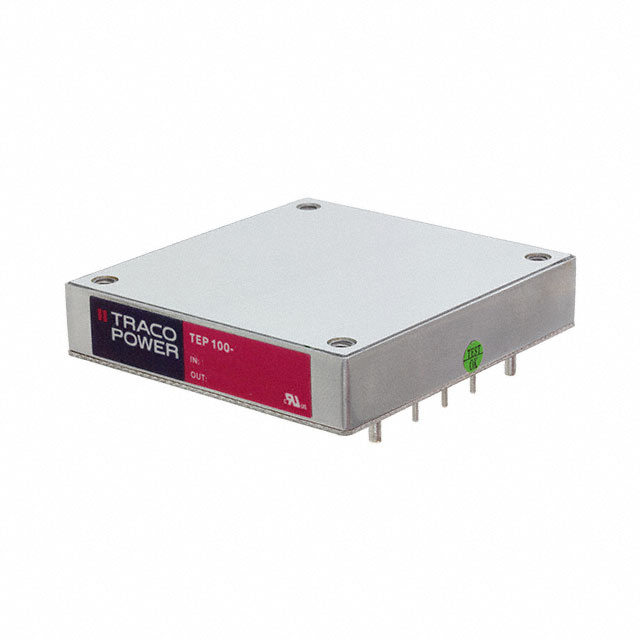

Specification	TEP 100-4818WIR-CMF

Applications	Railway, ITE (Commercial)
Approval Agency	cURus, CE, CB
Current - Output (Max)	2.1 A
Efficiency	91 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	101 W
Size / Dimension Height	1.33 in
Size / Dimension Length	3.35 in
Size / Dimension Width	2.4 in
Type	Enclosed
Voltage - Input (Max)	75 V
Voltage - Input (Min)	18 V
Voltage - Isolation	2.25 kV
Voltage - Output 1	48 V

TEP 100 Series

Part	Power (Watts)	Voltage - Input (Max)	Applications	Mounting Type	Features	Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Output 1	Voltage - Input (Min)	Current - Output (Max)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Number of Outputs	Voltage - Isolation	Efficiency	Package / Case	Approval Agency
Traco Power TEP 100-2412WIR	101 W	36 V	ITE (Commercial) Railway	Through Hole	OTP OVP Remote On/Off SCP UVLO	Isolated Module	75 °C	-40 °C	12 V	9 V	8.4 A	0.5 in	2.28 in	2.4 in	1	2.25 kV	90 %	9-DIP Module
Traco Power TEP 100-4818WIR-CMF	101 W	75 V	ITE (Commercial) Railway	Chassis Mount		Enclosed	75 °C	-40 °C	48 V	18 V	2.1 A	1.33 in	2.4 in	3.35 in	1	2.25 kV	91 %		CB CE cURus
Traco Power TEP 100-1213-CMF	101 W	18 V	ITE (Commercial)	Chassis Mount		Enclosed	75 °C	-40 °C	15 V	9 V	6.7 A	1.53 in	2.4 in	3.35 in	1	2.25 kV	91 %		cURus
Traco Power TEP 100-4812-CM	101 W	75 V	ITE (Commercial)	Chassis Mount		Enclosed	75 °C	-40 °C	12 V	36 V	8.4 A	1.1 in	2.4 in	3.35 in	1	2.25 kV	93 %		cURus
Traco Power TEP 100-1216-CMF	101 W	18 V	ITE (Commercial)	Chassis Mount		Enclosed	75 °C	-40 °C	28 V	9 V	3.6 A	1.53 in	2.4 in	3.35 in	1	2.25 kV	90 %		cURus
Traco Power TEP 100-4812WIR	101 W	75 V	ITE (Commercial) Railway	Through Hole	OTP OVP Remote On/Off SCP UVLO	Isolated Module	75 °C	-40 °C	12 V	18 V	8.4 A	0.5 in	2.28 in	2.4 in	1	2.25 kV	90 %	9-DIP Module
Traco Power TEP 100-4810-CMF	83 W	75 V	ITE (Commercial)	Chassis Mount		Enclosed	75 °C	-40 °C	3.3 V	36 V	25 A	1.53 in	2.4 in	3.35 in	1	2.25 kV	91 %		cURus
Traco Power TEP 100-2416WIR	101 W	36 V	ITE (Commercial) Railway	Through Hole	OTP OVP Remote On/Off SCP UVLO	Isolated Module	75 °C	-40 °C	28 V	9 V	3.6 A	0.5 in	2.28 in	2.4 in	1	2.25 kV	90 %	9-DIP Module
Traco Power TEP 100-2418-CMF	101 W	36 V	ITE (Commercial)	Chassis Mount		Enclosed	75 °C	-40 °C	48 V	18 V	2.1 A	1.53 in	2.4 in	3.35 in	1	2.25 kV	92 %		cURus
Traco Power TEP 100-2410-CMF	83 W	36 V	ITE (Commercial)	Chassis Mount		Enclosed	75 °C	-40 °C	3.3 V	18 V	25 A	1.53 in	2.4 in	3.35 in	1	2.25 kV	91 %		cURus
