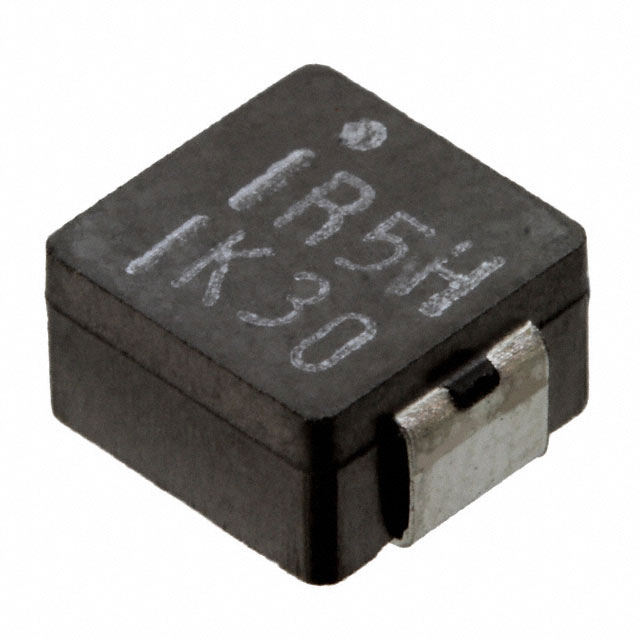

MPLCH0740L1R5
ActiveKEMET
1.5UH ±20% 10.8A SMD,7.8X6.7MM POWER INDUCTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
MPLCH0740L1R5
ActiveKEMET
1.5UH ±20% 10.8A SMD,7.8X6.7MM POWER INDUCTORS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPLCH0740L1R5 |
|---|---|
| Current - Saturation (Isat) | 10.8 A |
| Current Rating (Amps) | 11.1 A |
| DC Resistance (DCR) [Max] | 9 mOhm |
| Height - Seated (Max) [Max] | 0.157 in |
| Height - Seated (Max) [Max] | 4 mm |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 7.8 mm |
| Size / Dimension [x] | 0.307 in |
| Size / Dimension [y] | 6.7 mm |
| Size / Dimension [y] | 0.264 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.95 | |
| 10 | $ 1.66 | |||
| 25 | $ 1.53 | |||
| 50 | $ 1.36 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.10 | |||
| 500 | $ 1.04 | |||
| Digi-Reel® | 1 | $ 1.95 | ||
| 10 | $ 1.66 | |||
| 25 | $ 1.53 | |||
| 50 | $ 1.36 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.10 | |||
| 500 | $ 1.04 | |||
| Tape & Reel (TR) | 1000 | $ 0.90 | ||
| 2000 | $ 0.83 | |||
| 3000 | $ 0.80 | |||
| LCSC | Piece | 1 | $ 1.12 | |
| 200 | $ 0.43 | |||
| 500 | $ 0.42 | |||
| 1000 | $ 0.41 | |||
| Newark | Each (Supplied on Full Reel) | 2000 | $ 0.98 | |
| 4000 | $ 0.89 | |||
| 6000 | $ 0.86 | |||
| 10000 | $ 0.82 | |||
Description
General part information
MPLCH0740 Series
1.5 µH Shielded Wirewound Inductor 11.1 A 9mOhm Max Nonstandard
