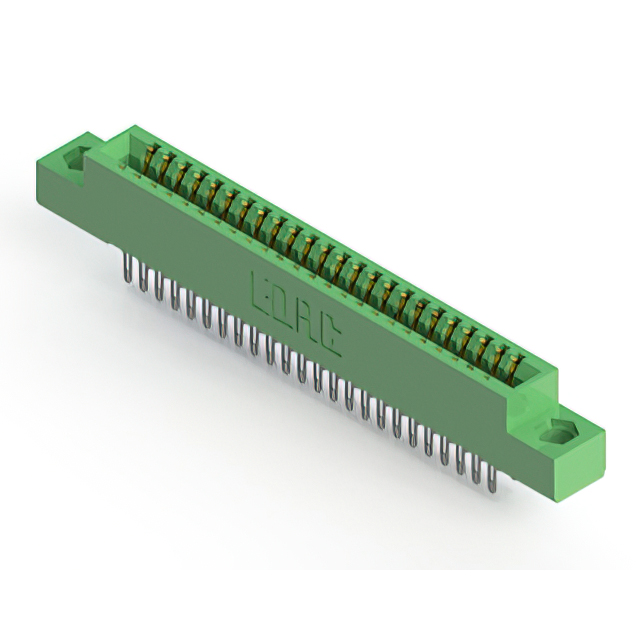

341-048-500-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-048-500-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 48POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-048-500-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-048 Series
| Part | Number of Positions/Bay/Row [custom] | Flange Feature | Contact Finish | Number of Rows | Material - Insulation | Mounting Type | Read Out | Termination | Termination Rows | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Gender | Card Type | Contact Material | Color | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 48 | Flush Mount M3 Threaded Insert Top Opening | Gold | 1 | Polyester Thermoplastic | Through Hole | Single | Solder | 1 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Copper Alloy | Green | 48 | |||
EDAC Inc. | 24 | Gold | 2 | Polyester Thermoplastic | Through Hole | Dual | Solder | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Copper Alloy | Green | 48 | ||||
EDAC Inc. | 24 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 2 | Polyester Thermoplastic | Through Hole | Dual | Solder | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Copper Alloy | Green | 48 | |||
EDAC Inc. | 24 | Flush Mount Top Opening Unthreaded | Gold | 2 | Polyester Thermoplastic | Through Hole | Dual | Solder | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Copper Alloy | Green | 48 | 3.25 mm | 0.128 " | |
EDAC Inc. | 24 | Flush Mount Top Opening Unthreaded | Gold | 2 | Diallyl Phthalate (DAP) | Through Hole | Dual | Solder Eyelet(s) | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Copper Alloy | Green | 48 | 3.96 mm | 0.156 in | |
EDAC Inc. | 24 | Flush Mount Top Opening Unthreaded | Gold | 2 | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | Solder | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Copper Alloy | Green | 48 | 3.96 mm | 0.156 in | Card Extender |
EDAC Inc. | 48 | Flush Mount Top Opening Unthreaded | Gold | 1 | Polyester Thermoplastic | Through Hole | Single | Solder | 1 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Copper Alloy | Green | 48 | 3.25 mm | 0.128 " | |
EDAC Inc. | 48 | Floating Bobbin Flush Mount | Gold | 1 | Polyester Thermoplastic | Through Hole | Single | Solder | 1 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Copper Alloy | Green | 48 | 2.95 mm | 0.116 in | |
EDAC Inc. | 48 | Flush Mount M3 Threaded Insert Top Opening | Gold | 1 | Diallyl Phthalate (DAP) | Through Hole | Single | Solder Eyelet(s) | 1 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Copper Alloy | Green | 48 | |||
EDAC Inc. | 24 | Gold | 2 | Polyester Thermoplastic | Board Edge Straddle Mount | Dual | Solder | 2 | Semi Bellows | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Female | Non Specified - Dual Edge | Copper Alloy | Green | 48 | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.03 | |
Description
General part information
341-048 Series
48 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
