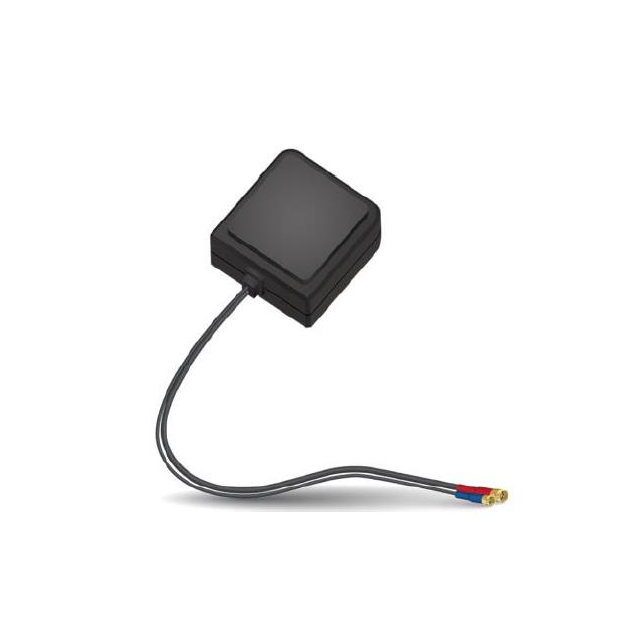

X1005249-LGA2SA10A2

Active

KYOCERA AVX

ANTENNA GPS-GLONASS/LTE

Search across all available documentation for this part.

Active

KYOCERA AVX

ANTENNA GPS-GLONASS/LTE

Technical Specifications

Parameters and characteristics for this part

ANTENNA GPS-GLONASS/LTE

Part	RF Family/Standard	Gain	Ingress Protection	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Frequency Group	Number of Bands [custom]	Mounting Type	Applications	VSWR	Termination	Height (Max) [Max]	Height (Max) [Max]	Antenna Type	Features
KYOCERA AVX X1005249-LGA2SA10A2	Cellular, Navigation	3 dBi, 3.5 dBi, 3.6 dBi, 3.7 dBi	IPX5	1.71 GHz, 2.3 GHz, 698 MHz	2.17 GHz, 2.69 GHz, 960 MHz	1.575 GHz, 1.602 GHz, 1.94 GHz, 2.495 GHz, 829 MHz	Wide Band	5	Adhesive	GLONASS, GPS, LTE	2, 2.3, 3.8, 5	SMA Male (2)	0.787 in	20 mm	Module	Cable - 1m, LNA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GLONASS, GPS, LTE Module SMA Male (2) Adhesive
