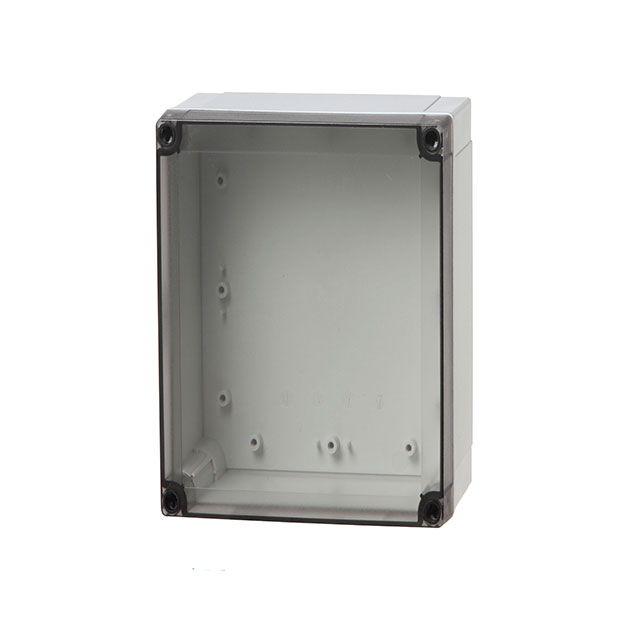

UL PC 150/125 XHT

Active

FIBOX Enclosures

BOX PLASTIC 7.09"L X 5.12"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLASTIC 7.09"L X 5.12"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UL PC 150/125 XHT	UL PC 150 Series

Area (L x W)	234 cm²	234 cm²
Area (L x W)	-	36.2 in˛
Area (L x W) [custom]	36.3 in²	36.3 in²
Color	Gray, Clear Cover/Door	Gray, Clear Cover/Door, Light Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	124.46 mm	3.9 - 124.46 mm
Height [z]	124.46 mm	99.06 - 175.26 mm
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Material Flammability Rating	UL 746C 5	UL 746C 5
Ratings	IP67, NEMA 4, IP66, NEMA 1, UL 508, NEMA 4X, NEMA 6	IP67, NEMA 4, IP66, NEMA 1, UL 508, NEMA 4X, NEMA 6
Size / Dimension [x]	180.09 mm	180.09 - 180.34 mm
Size / Dimension [x]	7.09 in	7.09 - 7.1 in
Size / Dimension [y]	5.122 in	5.1 - 5.122 in
Size / Dimension [y]	130.1 mm	129.54 - 130.1 mm

BOX PLASTIC 7.09"L X 5.12"W

Part	Ratings	Material	Container Type	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W) [custom]	Design	Color	Height [z]	Height [z]	Area (L x W)
FIBOX Enclosures UL PC 150/125 XHT	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.09 mm	7.09 in	5.122 in	130.1 mm	234 cm²	36.3 in²	Cover Included	Clear Cover/Door, Gray	124.46 mm	124.46 mm
FIBOX Enclosures UL PC 150/100 LT	IP66, IP67, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.34 mm	7.1 "	5.1 "	129.54 mm	234 cm²		Cover Included	Clear Cover/Door, Gray	3.9 in	99.06 mm	36.2 in˛
FIBOX Enclosures UL PC 150/175 XHT	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.09 mm	7.09 in	5.122 in	130.1 mm	234 cm²	36.3 in²	Cover Included	Clear Cover/Door, Gray	6.9 in	175.26 mm
FIBOX Enclosures UL PC 150/150 HG	IP66, IP67, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.34 mm	7.1 "	5.1 "	129.54 mm	234 cm²		Cover Included	Light Gray	5.9 in	149.86 mm	36.2 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 7.090" L x 5.122" W (180.09mm x 130.10mm) X 4.900" (124.46mm)
