SF7982-18PG-300

Active

Conxall/Switchcraft

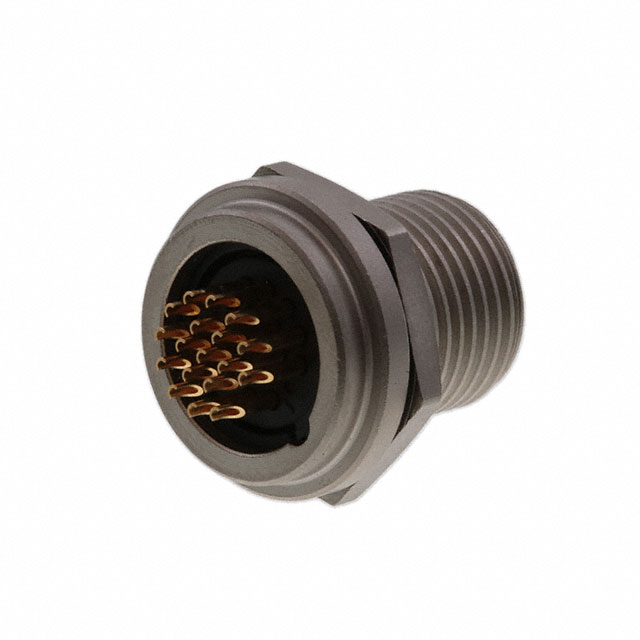

CONN RCPT MALE 18POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 18POS SOLDER CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.04

General part information

18 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available

Specification	SF7982-18PG-300	SF7982 Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	18	18
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded

Part	Ingress Protection	Orientation	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Contact Finish - Mating	Mounting Feature	Number of Positions	Shell Finish	Shell Material	Insert Material	Contact Material	Color
Conxall/Switchcraft SF7982-18PG-300	IP66/IP68	Keyed	Metal	-40 °C	120 °C	Male Pins, Receptacle	Shielded	Gold	Bulkhead - Front Side Nut	18	Nickel	Copper Alloy	Polyester Resin	Copper Alloy	Silver
Conxall/Switchcraft SF7982-18SG-300	IP66/IP68	Keyed	Metal	-40 °C	120 °C	Receptacle, Female Sockets	Shielded	Gold	Bulkhead - Front Side Nut	18	Nickel	Copper Alloy	Polyester Resin	Copper Alloy	Silver
