BCR402UE6433HTMA1
ActiveInfineon Technologies
THE BCR402U LINEAR LED DRIVER IC IS TAILORED TO DRIVE LOW POWER LEDS IN GENERAL AND AUTOMOTIVE LIGHTING APPLICATIONS.
Deep-Dive with AI
Search across all available documentation for this part.
BCR402UE6433HTMA1
ActiveInfineon Technologies
THE BCR402U LINEAR LED DRIVER IC IS TAILORED TO DRIVE LOW POWER LEDS IN GENERAL AND AUTOMOTIVE LIGHTING APPLICATIONS.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BCR402UE6433HTMA1 |
|---|---|
| Applications | Lighting |
| Current - Output / Channel | 65 mA |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature | 150 °C |

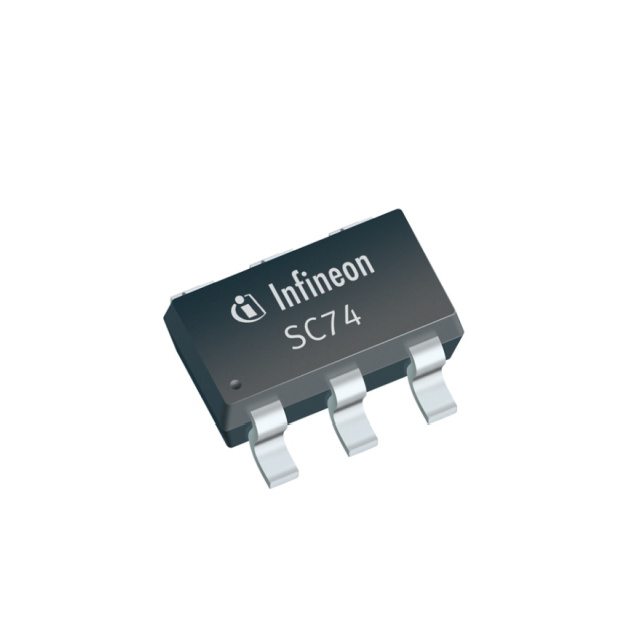

| Package / Case | SC-74, SOT-457 |
| Qualification | AEC-Q101 |
| Supplier Device Package | PG-SC74-6 |
| Topology | Constant Current |
| Type | Linear |
| Voltage - Output | 40 V |
| Voltage - Supply (Max) [Max] | 40 V |
| Voltage - Supply (Min) [Min] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.37 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 10 | $ 0.37 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
| 5000 | $ 0.14 | |||
| Tape & Reel (TR) | 10000 | $ 0.12 | ||
Description
General part information
BCR402 Series
The BCR402U linear LED driver IC is tailored to drive low power LEDs in general and automotive lighting applications.
Documents
Technical documentation and resources
No documents available
