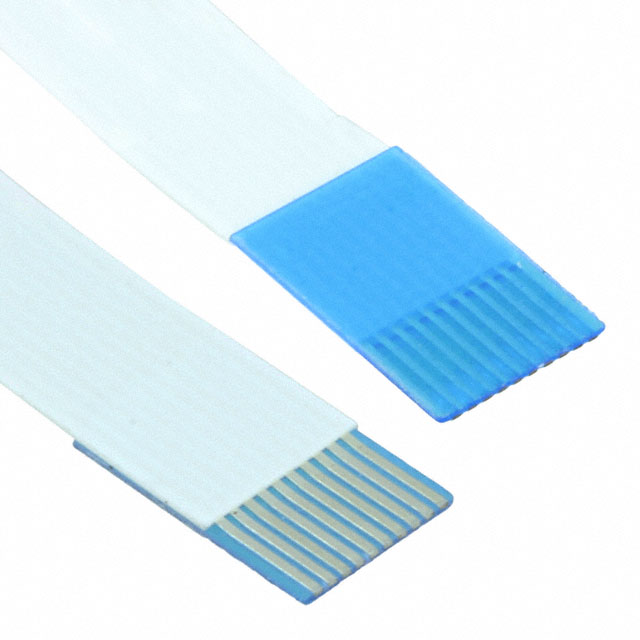

FJH-10-R-24.00-4

Active

Samtec Inc.

CABLE FFC/FPC 10POS 0.5MM 24"

Search across all available documentation for this part.

Active

Samtec Inc.

CABLE FFC/FPC 10POS 0.5MM 24"

Technical Specifications

Parameters and characteristics for this part

Specification	FJH-10-R-24.00-4

Cable Type	FPC, FFC
Length - Exposed Ends [x]	4 mm
Length - Exposed Ends [x]	0.157 in
Length [x]	609.6 mm
Length [x]	24 in
Number of Conductors	10
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides

...

Part	Length	Length	Number of Conductors	Cable Type	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style	Length [x]	Length [x]
Samtec Inc. FJH-10-D-06.62-4	6.62 in	168.15 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-10-D-02.37-4	2.37 "	60.2 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-10-D-31.50-4	31.5 in	800.1 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-10-D-50.00-4	50 in	1270 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-10-D-72.00-4			10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	1828.8 mm	72 in
Samtec Inc. FJH-10-D-19.68-4		497.8 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides		19.6 in
Samtec Inc. FJH-10-D-07.90-4	7.9 in	200.66 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-10-R-24.00-4			10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides	609.6 mm	24 in
Samtec Inc. FJH-10-D-05.60-4	5.6 in	142.24 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides
Samtec Inc. FJH-10-R-50.80-4	50.8 in	1290.3 mm	10	FFC FPC	4 mm	0.157 in	0.5 mm	0.02 in	Top on One Side Bottom on Other Backers on Both Sides

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FFC, FPC Cable 0.020" (0.50mm) 24.0" (609.6mm)
