DTP15-4P

Active

TE Connectivity Raychem Cable Protection

RECP ASM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

RECP ASM

Technical Specifications

Parameters and characteristics for this part

Specification	DTP15-4P

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.18 in
Contact Length - Post	4.57 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.71 mm
Pitch - Mating	0.264 in
Row Spacing - Mating	10.16 mm
Row Spacing - Mating	0.4 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 VAC

Part	Shrouding	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions Loaded	Fastening Type	Current Rating (Amps)	Number of Rows	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Connector Type	Contact Type	Mounting Type	Style	Contact Material	Termination	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Insulation Color
TE Connectivity Raychem Cable Protection DTP15-4P	Shrouded - 4 Wall	Circular	-55 °C	125 °C	200 VAC	All	Latch Holder	Varies by Wire Gauge	2	0.18 in	4.57 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	Tin	6.71 mm	0.264 in	Header	Male Pin	Panel Mount Through Hole	Board to Cable/Wire	Copper Alloy	Solder	10.16 mm	0.4 in	4	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

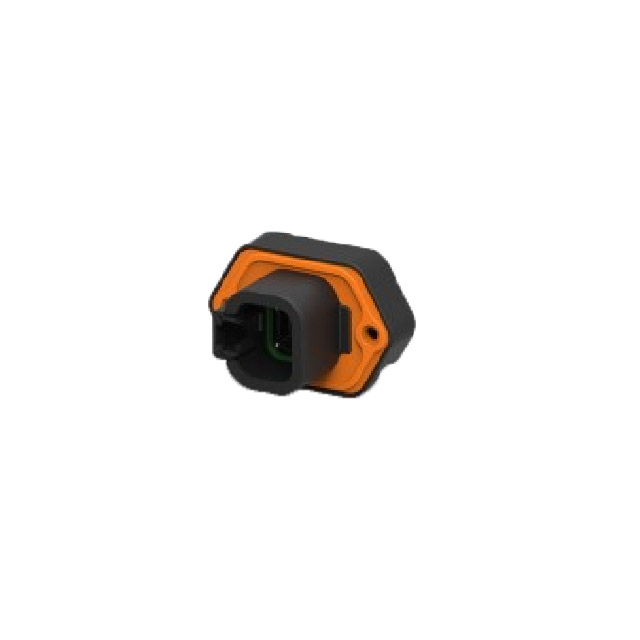

Connector Header Panel Mount, Through Hole 4 position 0.264" (6.71mm)
