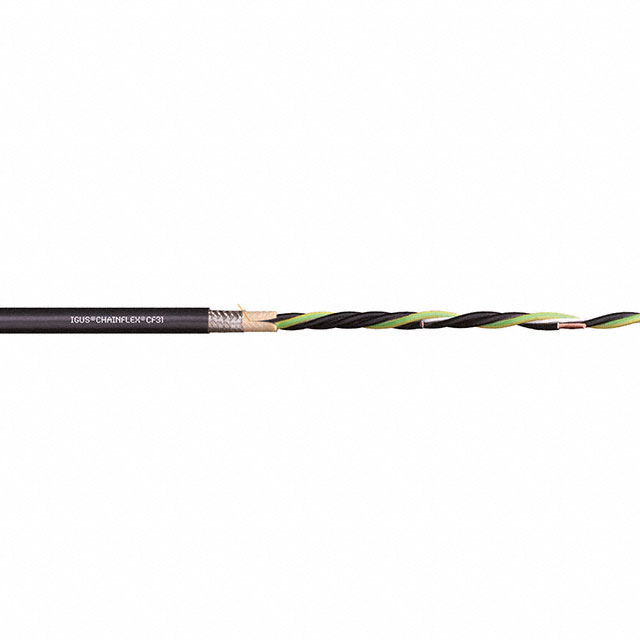

CF31-350-04

Active

Igus

CABLE 4COND 2AWG BLK SHLD FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF31-350-04

Active

Igus

CABLE 4COND 2AWG BLK SHLD FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF31-350-04	CF31 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE), Polyethylene (XLPE), Irradiated
Conductor Material	Copper, Bare	Copper, Bare
Features	Flame Retardant, Oil Resistant	Flame Retardant, Oil Resistant, Rip Cord
Jacket (Insulation) Diameter	-	0.512 - 1.693 in
Jacket (Insulation) Diameter [diameter]	1.28 in	1.28 - 43 mm
Jacket (Insulation) Diameter [diameter]	32.51 mm	32.51 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Black	Black
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	4	4 - 5
Ratings	UL Style 2570	UL Style 2570
Shield Coverage	90 %, 100 %	90 - 100 %
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Foil, Braid	Foil, Braid
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	1000 V	1000 V
Wire Gauge	2 AWG	1 - 13.5 AWG

CF31 Series

CABLE 4COND 1AWG BLK SHLD FEET

Part	Jacket Color	Number of Conductors	Conductor Insulation	Shield Type	Wire Gauge	Ratings	Features	Jacket (Insulation) Material	Conductor Material	Shield Coverage	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Cable Type	Voltage	Spool Size	Spool Size	Jacket (Insulation) Diameter [diameter]
Igus CF31-500-04	Black	4	Thermoplastic Elastomer (TPE)	Braid, Foil	1 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	1.476 in	37.5 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V
Igus CF31-25-05	Black	5	Thermoplastic Elastomer (TPE)	Braid, Foil	13.5 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	0.512 in	13.01 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V
Igus CF31-60-05	Black	5	Thermoplastic Elastomer (TPE)	Braid, Foil	10 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	0.709 "	18.01 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V
Igus CF31-40-05	Black	5	Thermoplastic Elastomer (TPE)	Braid, Foil	12 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	0.591 in	15.01 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V
Igus CF31-250-04	Black	4	Thermoplastic Elastomer (TPE)	Braid, Foil	4 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity			Aluminum, Copper, Tinned	Multi-Conductor	1000 V
Igus CF31-100-04	Black	4	Thermoplastic Elastomer (TPE)	Braid, Foil	8 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity			Aluminum, Copper, Tinned	Multi-Conductor	1000 V	1000 ft	304.8 m
Igus CF31-350-04	Black	4	Thermoplastic Elastomer (TPE)	Braid, Foil	2 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity		1.28 in	Aluminum, Copper, Tinned	Multi-Conductor	1000 V			32.51 mm
Igus CF31-160-04	Black	4	Thermoplastic Elastomer (TPE)	Braid, Foil	6 AWG	UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	0.925 in	23.5 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V	1000 ft	304.8 m
Igus CF31-700-04	Black	4	Thermoplastic Elastomer (TPE)	Braid, Foil		UL Style 2570	Flame Retardant, Oil Resistant	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	1.693 in	43 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V
Igus CF31-100-05	Black	5	Polyethylene (XLPE), Irradiated	Braid, Foil	8 AWG	UL Style 2570	Flame Retardant, Oil Resistant, Rip Cord	Poly-Vinyl Chloride (PVC)	Copper, Bare	90 %, 100 %	Enter Number of Feet in Order Quantity	0.846 in	21.49 mm	Aluminum, Copper, Tinned	Multi-Conductor	1000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.55
		500	$ 49.49
		1000	$ 47.52

Description

General part information

CF31 Series

4 Conductor Multi-Conductor Cable Black 2 AWG Foil, Braid Enter Number of Feet in Order Quantity
