T4042014031-000
ActiveTE Connectivity AMP Connectors

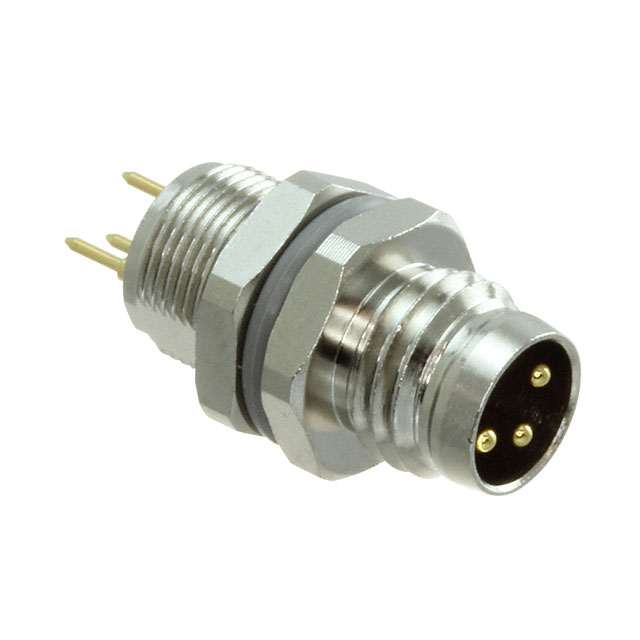

CONN PLUG MALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4042014031-000
ActiveTE Connectivity AMP Connectors
CONN PLUG MALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T4042014031-000 |
|---|---|
| Applications | Telecommunications, Automation Control, Industrial |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead |
| Mounting Type | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | M8-3 |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.01 | |
| 10 | $ 5.27 | |||
| 25 | $ 5.13 | |||
| 50 | $ 5.02 | |||
| 100 | $ 4.71 | |||
| 250 | $ 4.69 | |||
| 500 | $ 4.38 | |||
| 1000 | $ 3.92 | |||
| 2500 | $ 3.64 | |||
T40420 Series
CONN PLUG MALE 3POS GOLD SOLDER
| Part | Termination | Applications | Shell Finish | Color | Current Rating (Amps) | Shell Material | Voltage Rating | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Connector Type | Mounting Type | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mounting Feature | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4042014031-000 | Solder | Automation Control, Industrial, Telecommunications | Nickel | Silver | 3 A | Copper Alloy | 60 VDC | M8-3 | 3 µin | 0.076 µm | Gold | Male Pins, Plug | Panel Mount, Through Hole | Metal | 85 °C | -40 °C | IP67 - Dust Tight, Waterproof | Bulkhead | A |
Description
General part information
T40420 Series
3 Position Circular Connector Plug, Male Pins Solder
