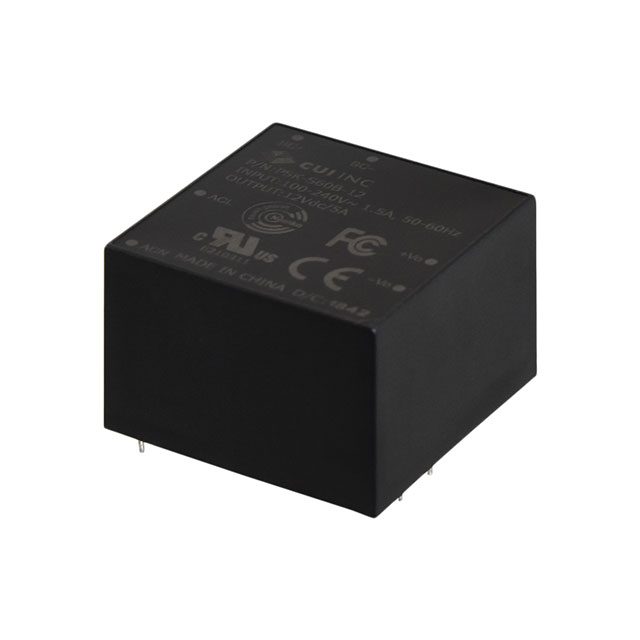

PSK-S60B-24

Active

CUI Inc.

AC/DC CONVERTER 24V 60W

Deep-Dive with AI

Search across all available documentation for this part.

PSK-S60B-24

Active

CUI Inc.

AC/DC CONVERTER 24V 60W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S60B-24

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output (Max) [Max]	2.5 A
Efficiency	89 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Package / Case	6-DIP Module
Power (Watts)	60 W
Size / Dimension [x]	54.3 mm
Size / Dimension [x]	2.14 in
Size / Dimension [y]	54.3 mm
Size / Dimension [y]	2.14 in
Size / Dimension [z]	35.8 mm
Size / Dimension [z]	1.41 in
Standard Number	61000-6-3, 61000-3-3, 61000-3-2, 61000-6-4, 60950-1, 55032 Class B, 61000-6-1, 61000-6-2, 62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Output 1	24 V

PSK-S60 Series

Part	Mounting Type	Current - Output (Max) [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Load Regulation	Package / Case	Voltage - Output 1	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Line Regulation	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Standard Number
CUI Inc. PSK-S60B-12-PB	Through Hole	5 A	CB Scheme EN IEC SIQ TUV UL	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %	6-DIP Module	12 V	Universal Input	60 W	70 °C	-30 °C	88 %	ITE (Commercial)	1 %	Enclosed	54.3 mm	54.3 mm	2.14 in	2.14 in	35.8 mm	1.41 in	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1
CUI Inc. PSK-S60B-24	Through Hole	2.5 A	CB Scheme EN IEC SIQ TUV UL	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %	6-DIP Module	24 V	Universal Input	60 W	70 °C	-30 °C	89 %	ITE (Commercial)	1 %	Enclosed	54.3 mm	54.3 mm	2.14 in	2.14 in	35.8 mm	1.41 in	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1
CUI Inc. PSK-S60B-5	Through Hole	8 A	CB Scheme EN IEC SIQ TUV UL	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %	6-DIP Module	5 V	Universal Input	40 W	70 °C	-30 °C	86 %	ITE (Commercial)	1 %	Enclosed	54.3 mm	54.3 mm	2.14 in	2.14 in	35.8 mm	1.41 in	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1
CUI Inc. PSK-S60B-48-PB	Through Hole	1.25 A	CB Scheme EN IEC SIQ TUV UL	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %	6-DIP Module	48 V	Universal Input	60 W	70 °C	-30 °C	90 %	ITE (Commercial)	1 %	Enclosed	54.3 mm	54.3 mm	2.14 in	2.14 in	35.8 mm	1.41 in	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1
CUI Inc. PSK-S60B-15-PB	Through Hole	4 A	CB Scheme EN IEC SIQ TUV UL	264 VAC 370 VDC	90 VAC 120 VDC	1	1 %	6-DIP Module	15 V	Universal Input	60 W	70 °C	-30 °C	88 %	ITE (Commercial)	1 %	Enclosed	54.3 mm	54.3 mm	2.14 in	2.14 in	35.8 mm	1.41 in	55032 Class B 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61000-6-3 61000-6-4 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.74
		5	$ 50.18
		10	$ 48.61
		26	$ 47.04
		52	$ 45.47
		104	$ 43.90

Description

General part information

PSK-S60 Series

Enclosed AC DC Converters 1 Output 24V 2.5A 90 ~ 264 VAC, 120 ~ 370 VDC Input
