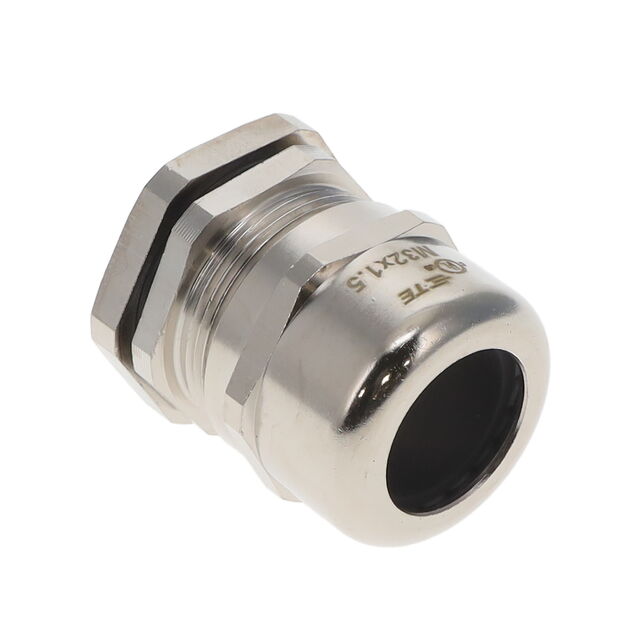

EM-SGL-M32-MET-G

Active

TE Connectivity ENTRELEC

CABLE GLAND 15-21MM M32 BRASS

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 15-21MM M32 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EM-SGL-M32-MET-G	EM-SGL-M32 Series

Color	Silver	Silver
Includes	Locknut, Seal	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm	18.01 - 21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in	0.709 - 0.827 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.591 "	0.512 - 0.591 "
Outside Cable Diameter (Min) [Min] [diameter]	15 mm	15 mm
Thread Length	8 mm	8 - 9 mm
Thread Length	0.315 in	0.315 - 0.354 in
Thread Size	M32x1.5	M32x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 15-21MM M32 BRASS

Part	Ingress Protection	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Includes	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Size	Outside Cable Diameter (Min)
TE Connectivity ENTRELEC EM-SGL-M32-MET-G	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	21 mm	0.827 in	Silver	Cable Gland	Locknut, Seal	8 mm	0.315 in	100 °C	-20 C	0.591 "	15 mm	M32x1.5
TE Connectivity ENTRELEC EM-SGL-M32-MET-E	IP68 - Dust Tight, Waterproof	Brass, Nickel Plated	18.01 mm	0.709 in	Silver	Cable Gland	Locknut, Seal	9 mm	0.354 in	100 °C	-20 C	0.512 in		M32x1.5	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M32x1.5 Silver
