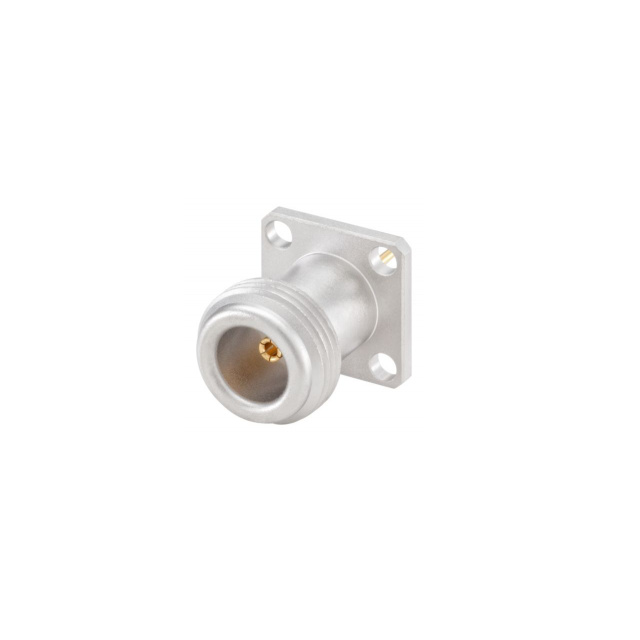

53K465-500N5

Active

Rosenberger

N TYPE PANEL JACK

Search across all available documentation for this part.

Active

Rosenberger

N TYPE PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53K465-500N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Connector Style	Dielectric Material	Body Finish	Impedance	Center Contact Plating	Number of Ports	Shield Termination	Housing Color	Voltage Rating	Contact Termination	Frequency - Max [Max]	Center Contact Material	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mating Cycles	Mounting Feature
Rosenberger 53K465-500N5	N Type	Polytetrafluoroethylene (PTFE)	White Bronze	50 Ohms	Gold	1	Solder	Silver	500 V	Solder	11 GHz	Beryllium Copper	Brass	155 °C	-55 °C	Female Socket Jack	500	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
