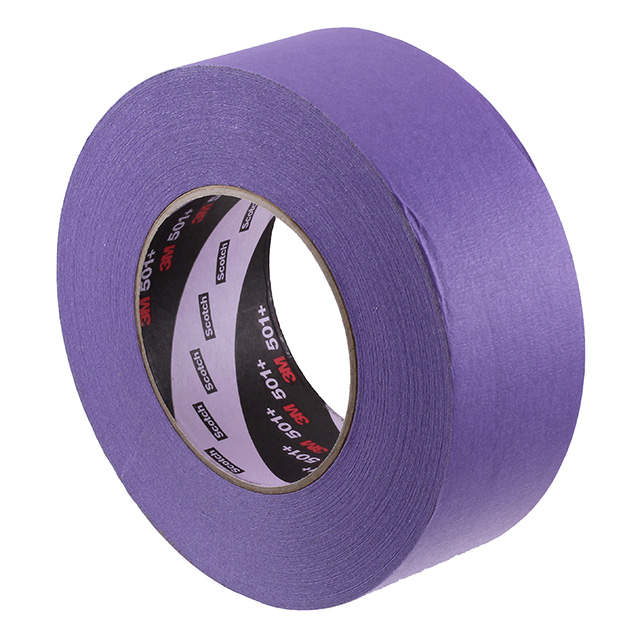

3M 501+ PURPLE 5"X8.625"-50

Active

3M (TC)

TAPE MASKING PURPLE 5"X8 5/8"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 501+ PURPLE 5"X8.625"-50

Active

3M (TC)

TAPE MASKING PURPLE 5"X8 5/8"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3M 501+ PURPLE 5"X8.625"-50

Adhesive	Rubber
Backing, Carrier	Crepe Paper
Color	Purple
Length	8.63 in
Length
Length	219.08 mm
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Masking
Temperature Range	149 °C
Temperature Range	300 °F
Thickness	7.3 mils
Thickness	0.0073 in
Thickness	0.185 mm
Width [y]	127 mm
Width [y]	5 in

3M 501 Series

...

Part	Length	Length	Thickness	Thickness	Thickness	Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Backing, Carrier	Tape Type	Shelf Life	Temperature Range	Temperature Range	Shelf Life Start	Width	Width	Width	Color	Width [x]	Width [x]	Length	Length [x]	Length [x]	Width [diameter]	Width [y]	Width [y]
3M (TC) 3M 501+ 0.75" X 7"-250	177.8 mm	7 in	7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture	0.75 in	19.05 mm	0.75 in	Purple
3M (TC) 501+P-CIR-7.25(25)	184.15 mm	7.25 in	7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple	177.8 mm	7 in
3M (TC) 3M 501+ 4" X 5"-100			7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple	101.6 mm	4 "		5 in	127 mm
3M (TC) 3M 501+ CIRCLE-0.375"-5000			7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture			0.38 in 9.65 mm	Purple						0.375 in
3M (TC) 3M 501+ 3" X 7.25"-50	184.15 mm	7.25 in	7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple	76.2 mm	3 in
3M (TC) 3M 501+ CIRCLE-4.875"-100			7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture			4.88 in	Purple
3M (TC) 3M 501+ PURPLE 0.71" X 60YD	55 m	180 ft	7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple	18 mm	0.71 in	60 yds
3M (TC) 3M 501+ PURPLE 5"X8.625"-50	219.08 mm	8.63 in	7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple							127 mm	5 in
3M (TC) 3M 501+ 1" X 1.5"-500	38.1 mm	1.5 "	7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple	25.4 mm	1 in
3M (TC) 3M 501+ 2" X 3"-250	76.2 mm		7.3 mils	0.0073 in	0.185 mm	Rubber	70 °F	21 °C	Crepe Paper	Masking	18 Months	149 °C	300 °F	Date of Manufacture				Purple				3 in			50.8 mm	2 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 44.30

Description

General part information

3M 501 Series

Masking Tape Rubber Adhesive Purple 5.00" (127.00mm) X 8.63" (219.08mm) 8 5/8"
