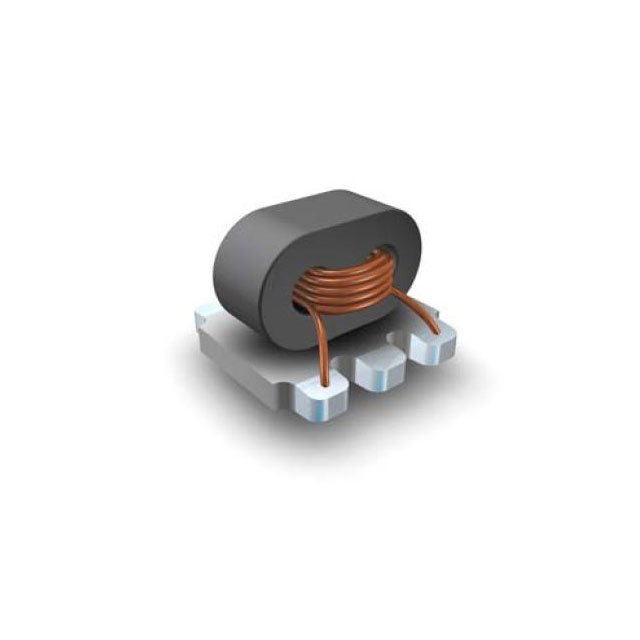

MACP-010718-CG09E0
ActiveMACOM Technology Solutions
COUPLER 17DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MACP-010718-CG09E0
ActiveMACOM Technology Solutions
COUPLER 17DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MACP-010718-CG09E0 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 17.3 dB |
| Frequency [Max] | 1.002 GHz |
| Frequency [Min] | 40 MHz |
| Package / Case | 5-SMD, No Lead |
| Power - Max [Max] | 250 mW |
| Return Loss | 26 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.13 | |
| 10 | $ 1.90 | |||
| 25 | $ 1.71 | |||
| 100 | $ 1.56 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.34 | |||
| Digi-Reel® | 1 | $ 2.13 | ||
| 10 | $ 1.90 | |||
| 25 | $ 1.71 | |||
| 100 | $ 1.56 | |||
| 250 | $ 1.41 | |||
| 500 | $ 1.34 | |||
| Tape & Reel (TR) | 2000 | $ 1.34 | ||
Description
General part information
MACP-010718 Series
RF Directional Coupler General Purpose 40MHz ~ 1.002GHz 17.3dB 250mW 5-SMD, No Lead
Documents
Technical documentation and resources
