N3627-6202RB

Active

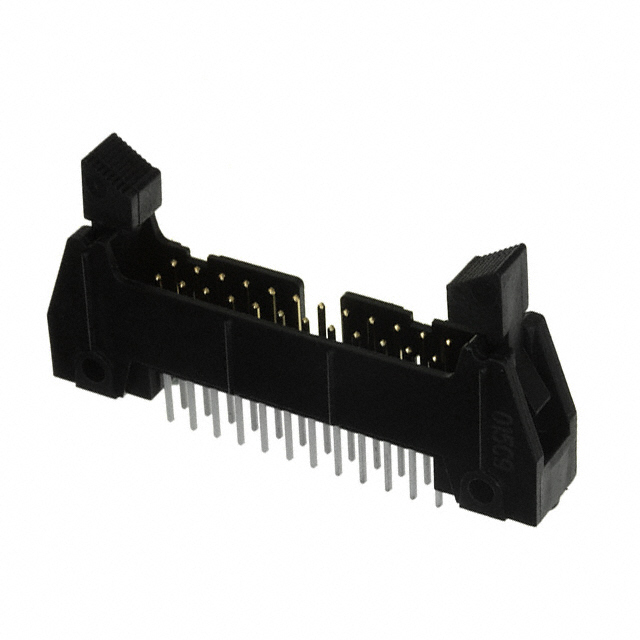

CONN EJECTOR HEADER HDR 24 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3627-6202RB

Active

CONN EJECTOR HEADER HDR 24 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.06
		10	$ 4.60
		250	$ 3.54
		500	$ 3.44
		1000	$ 2.94

Description

General part information

N3627 Series

Connector Header Through Hole 24 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3627-6202RB	N3627 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Latch Lock/Eject Hooks, Short	Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long, Push-Pull
Insulation Color	Black	Black
Insulation Height	17.27 mm	8.64 - 17.27 mm
Insulation Height	0.68 in	0.34 - 0.68 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	24	24
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.652 in	0.652 - 0.695 in
Overall Contact Length	16.56 mm	16.56 - 17.65 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

N3627 Series

CONN EJECTOR HEADER HDR 24 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Part	Style	Contact Type	Contact Material	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Height	Insulation Height	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Material	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Mating	Connector Type	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Contact Shape	Number of Positions Loaded
3M N3627-6203RB	Board to Cable/Wire	Male Pin	Copper Alloy	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	3.94 mm	0.155 "	Black	17.27 mm	0.68 in	2	2.54 mm	0.1 in	Solder	200 µin	5.08 µm	Shrouded - 4 Wall	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.695 in	17.65 mm	0.1 in	2.54 mm	24	6.1 mm	0.24 in	Gold	Header	Through Hole	UL94 V-0	1.75 A	Latch Lock/Eject Hooks, Short	Square	All
3M N3627-5303RB	Board to Cable/Wire	Male Pin	Copper Alloy	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	3.94 mm	0.155 "	Black	8.64 mm	0.34 in	2	2.54 mm	0.1 in	Solder	200 µin	5.08 µm	Shrouded - 4 Wall	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			0.1 in	2.54 mm	24	6.1 mm	0.24 in	Gold	Header	Through Hole, Right Angle	UL94 V-0	1.75 A	Latch Lock/Eject Hooks, Long	Square	All
3M N3627-5002RB	Board to Cable/Wire	Male Pin	Copper Alloy	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	2.84 mm	0.112 in	Black	8.64 mm	0.34 in	2	2.54 mm	0.1 in	Solder	200 µin	5.08 µm	Shrouded - 4 Wall	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			0.1 in	2.54 mm	24	6.1 mm	0.24 in	Gold	Header	Through Hole, Right Angle	UL94 V-0	1.75 A	Push-Pull	Square	All
3M N3627-6003RB	Board to Cable/Wire	Male Pin	Copper Alloy	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	3.94 mm	0.155 "	Black	17.27 mm	0.68 in	2	2.54 mm	0.1 in	Solder	200 µin	5.08 µm	Shrouded - 4 Wall	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.695 in	17.65 mm	0.1 in	2.54 mm	24	6.1 mm	0.24 in	Gold	Header	Through Hole	UL94 V-0	1.75 A	Push-Pull	Square	All
3M N3627-6202RB	Board to Cable/Wire	Male Pin	Copper Alloy	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	2.84 mm	0.112 in	Black	17.27 mm	0.68 in	2	2.54 mm	0.1 in	Solder	200 µin	5.08 µm	Shrouded - 4 Wall	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.652 in	16.56 mm	0.1 in	2.54 mm	24	6.1 mm	0.24 in	Gold	Header	Through Hole	UL94 V-0	1.75 A	Latch Lock/Eject Hooks, Short	Square	All
3M N3627-5202RB	Board to Cable/Wire	Male Pin	Copper Alloy	Tin	105 ░C	-55 °C	30 Áin	0.76 Ám	2.84 mm	0.112 in	Black	8.64 mm	0.34 in	2	2.54 mm	0.1 in	Solder	200 µin	5.08 µm	Shrouded - 4 Wall	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester			0.1 in	2.54 mm	24	6.1 mm	0.24 in	Gold	Header	Through Hole, Right Angle	UL94 V-0	1.75 A	Latch Lock/Eject Hooks, Short	Square	All
