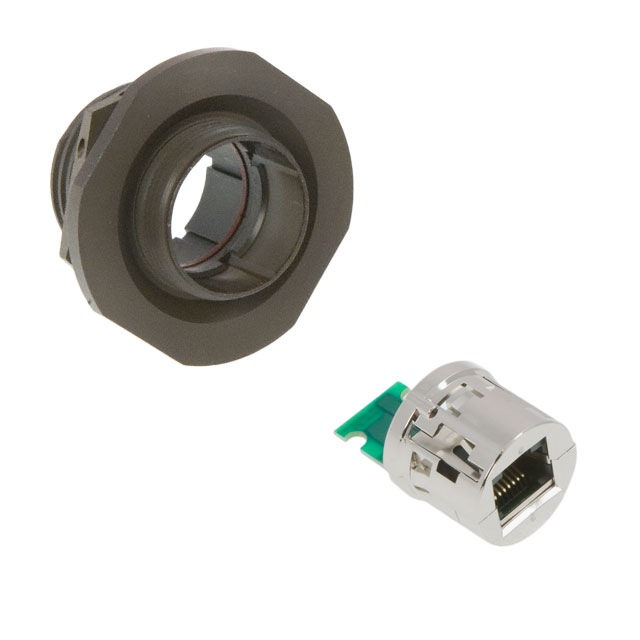

RJFTV72G00

Active

Amphenol Socapex

CONN MOD JACK 8P8C UNSHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJFTV72G00

Active

Amphenol Socapex

CONN MOD JACK 8P8C UNSHIELDED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJFTV72G00

Connector Type	Jack
Features	Circular Threaded Coupling
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Unshielded
Tab Direction	User Selectable
Termination	PC Board, Solder

RJFTV72 Series

Part	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Number of Rows	Tab Direction	Termination	Number of Ports	Shielding	Number of Positions/Contacts	Ratings	Features	LED Color	Ingress Protection	Length	Length	Color	Style	Cable Type	Length [x]	Length [x]
Amphenol Socapex RJFTV72G00	Jack	Bulkhead Panel Mount	85 °C	-40 °C	Straight	1	User Selectable	PC Board Solder	1	Unshielded	8p8c (RJ45 Ethernet)	Cat5e	Circular Threaded Coupling	Does Not Contain LED	IP67 - Dust Tight Waterproof
Amphenol Socapex RJFTV72N00	Jack	Bulkhead Panel Mount	85 °C	-40 °C	Straight	1	User Selectable	PC Board Solder	1	Unshielded	8p8c (RJ45 Ethernet)	Cat5e	Circular Threaded Coupling	Does Not Contain LED	IP67 - Dust Tight Waterproof
Amphenol Socapex RJFTV72N15100BTX	Jack to Plug	Flange Panel Mount								Double Shielded	8p8c (RJ45 Ethernet)		Circular Threaded Coupling			4.92 '	1.5 m	Gray	Cat5e Industrial Environments - IP68	Round Cable
Amphenol Socapex RJFTV72G03100BTX	Jack to Plug	Flange Panel Mount								Double Shielded	8p8c (RJ45 Ethernet)		Circular Threaded Coupling					Gray	Cat5e Industrial Environments - IP68	Round Cable	0.98 ft	300 mm
Amphenol Socapex RJFTV72G10100BTX	Jack to Plug	Flange Panel Mount								Double Shielded	8p8c (RJ45 Ethernet)		Circular Threaded Coupling					Gray	Cat5e Industrial Environments - IP68	Round Cable	3.28 ft	1 m
Amphenol Socapex RJFTV72ZN00	Jack	Bulkhead Panel Mount	85 °C	-40 °C	Straight	1	User Selectable	PC Board Solder	1	Unshielded	8p8c (RJ45 Ethernet)	Cat5e	Circular Threaded Coupling	Does Not Contain LED	IP67 - Dust Tight Waterproof
Amphenol Socapex RJFTV72G05100BTX	Jack to Plug	Flange Panel Mount								Double Shielded	8p8c (RJ45 Ethernet)		Circular Threaded Coupling					Gray	Cat5e Industrial Environments - IP68	Round Cable	1.64 ft	500 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.81
		10	$ 69.56
		25	$ 66.89
		50	$ 64.66
		100	$ 61.09

Description

General part information

RJFTV72 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Unshielded Cat5e
