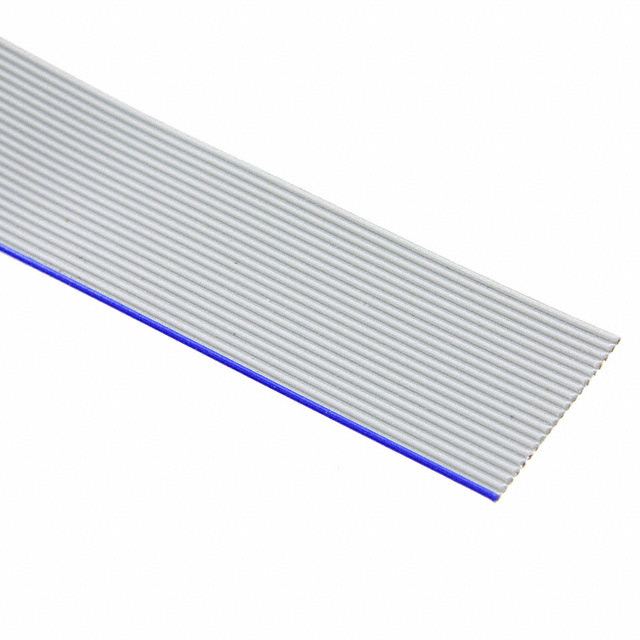

3756/20 100

Unknown

3M (TC)

CBL RIBN 20COND 0.025 GRAY 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3756/20 100

Unknown

3M (TC)

CBL RIBN 20COND 0.025 GRAY 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3756/20 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	38 AWG
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Gray
Length	25 ft, 1 ft, 50 ft
Length	7.62 m, 304.8 mm, 15.24 m
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ribbon Thickness	0.64 mm
Ribbon Thickness	0.025 in
Ribbon Width [custom]	0.5 "
Ribbon Width [custom]	12.7 mm
Shielding	Unshielded
Voltage	150 V
Wire Gauge	30 AWG

3756 Series

Part	Ribbon Thickness	Ribbon Thickness	Length	Length	Jacket (Insulation) Material	Voltage	Ribbon Width [custom]	Ribbon Width [custom]	Insulation Resistance	First Conductor Mark	Length [x]	Length [x]	Pitch [x]	Pitch [x]	Number of Conductors	Jacket Color	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shielding	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ribbon Width	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width [x]	Ribbon Width [x]	Features
3M (TC) 3756/20 100	0.64 mm	0.025 in	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V	0.5 "	12.7 mm	10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	20	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable
3M (TC) 3756/100 100	0.64 mm	0.025 in	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft 100 ft	3.05 m 30.48 m	0.64 mm	0.025 in	100	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	63.5 mm	2.5 "
3M (TC) 3756/68 100	0.64 mm	0.025 in	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft	3.05 m	0.64 mm	0.025 in	68	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable			1.7 in	43.18 mm
3M (TC) 3756/26 100	0.64 mm	0.025 in	1 ft 25 ft	7.62 m 304.8 mm	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft 100 ft	3.05 m 30.48 m	0.64 mm	0.025 in	26	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	16.51 mm	0.65 in
3M (TC) 3756/34	0.64 mm	0.025 in	300 ft	91.44 m	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue			0.64 mm	0.025 in	34	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	21.59 mm	0.85 in
3M (TC) 3756/30 100	0.64 mm	0.025 in			Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	30	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable	19.05 mm	0.75 "
3M (TC) 3756/60 100	0.64 mm	0.025 in	25 ft	7.62 m	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	10 ft 100 ft	3.05 m 30.48 m	0.64 mm	0.025 in	60	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable			1.5 in	38.1 mm
3M (TC) 3756/24	0.64 mm	0.025 in			Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	24	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable
3M (TC) 3756/50 300SF	0.64 mm	0.025 in	300 ft	91.44 m	Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue			0.64 mm	0.025 in	50	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable					1.25 "	31.75 mm	Splice Free
3M (TC) 3756/68SF	0.64 mm	0.025 in			Thermoplastic Elastomer (TPE)	150 V			10 GOhm	Blue	100 ft	30.48 m	0.64 mm	0.025 in	68	Gray	Copper Tinned	-40 °C	105 ░C	30 AWG	Unshielded	7	38 AWG	Flat Cable			1.7 in	43.18 mm			Splice Free

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.59
		1	$ 2.51
		5	$ 30.19
		5	$ 2.09
		10	$ 1.93
		10	$ 27.76
		25	$ 1.73
		25	$ 24.82
		50	$ 22.64
		50	$ 1.59
		100	$ 20.85
		100	$ 1.47
	Spool	1	$ 137.95
		5	$ 110.06
		10	$ 99.60
		25	$ 87.65
		50	$ 79.18
		100	$ 72.21

Description

General part information

3756 Series

Flat Ribbon Cable Gray 20 Conductors 0.025" (0.64mm) Flat Cable 50.0' (15.24m)
