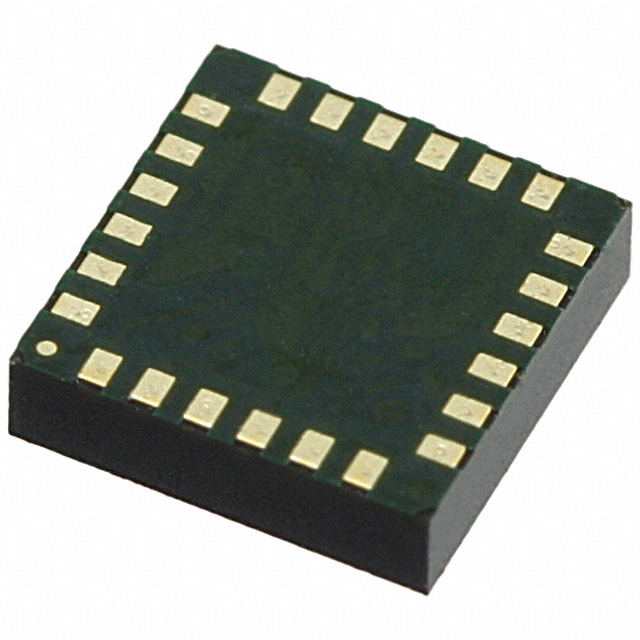

LSM9DS0TR

Obsolete

STMicroelectronics

IMU ACCEL/GYRO/MAG I2C/SPI 24LGA

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IMU ACCEL/GYRO/MAG I2C/SPI 24LGA

Technical Specifications

Parameters and characteristics for this part

Specification	LSM9DS0TR

Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C, SPI
Package / Case	24-TFLGA Module
Sensor Type	Magnetometer, 9 Axis, Temperature, Gyroscope, Accelerometer
Supplier Device Package	24-LGA (4x4)

Part	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Sensor Type
STMicroelectronics LSM9DS0TR	24-LGA (4x4)	24-TFLGA Module	85 °C	-40 °C	Surface Mount	I2C SPI	9 Axis Accelerometer Gyroscope Magnetometer Temperature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer, Gyroscope, Magnetometer, Temperature, 9 Axis Sensor I2C, SPI Output
