337-027-500-678

Active

EDAC Inc.

CONN EDGE SGL FMALE 27POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

337-027-500-678

Active

EDAC Inc.

CONN EDGE SGL FMALE 27POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-027-500-678

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	27
Number of Positions/Bay/Row [custom]	27
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

337-027 Series

...

Part	Contact Type	Pitch [x]	Pitch [x]	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Card Type	Contact Finish	Material - Insulation	Gender	Number of Rows	Contact Material	Termination	Color	Flange Feature	Flange Feature	Read Out	Termination Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 337-027-544-602	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Wire Wrap	Green	3.25 mm	0.128 in	Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 337-027-500-678	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Solder Eyelet(s)	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C	Card Guides	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 337-027-521-607	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Solder	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C		M3 Threaded Insert Top Mount Opening
EDAC Inc. 337-027-559-158	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Wire Wrap	Green			Single	1	Through Hole Right Angle	10 Áin	0.25 Ám	-40 °C	105 ░C	Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 337-027-520-602	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Solder	Green	3.25 mm	0.128 in	Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 337-027-523-108	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Solder	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 337-027-521-101	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Solder	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 337-027-541-103	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Wire Wrap	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C		Floating Bobbin Flush Mount	0.116 in	2.95 mm
EDAC Inc. 337-027-520-101	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Solder	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 337-027-540-158	Cantilever	0.156 in	3.96 mm	27	1.37 mm	0.054 "	1.78 mm	0.07 in	27	Non Specified - Single Edge	Gold	Polyester Thermoplastic	Female	1	Copper Alloy	Wire Wrap	Green			Single	1	Through Hole	10 Áin	0.25 Ám	-40 °C	105 ░C	Card Guides	4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.38

Description

General part information

337-027 Series

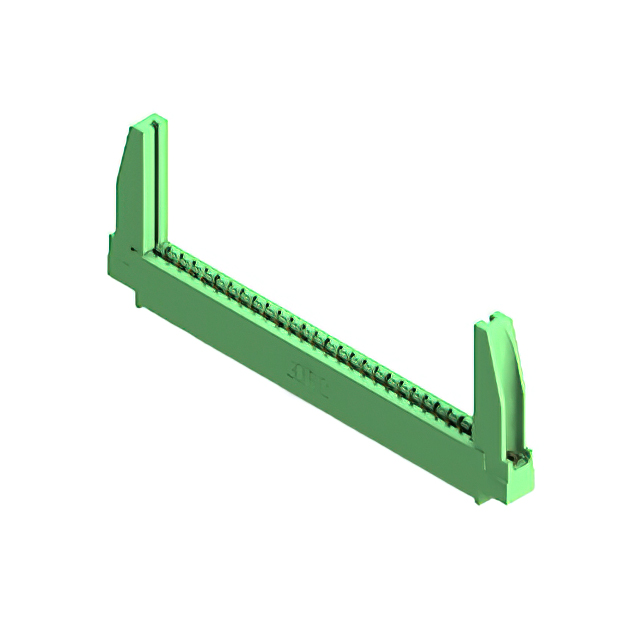

27 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
