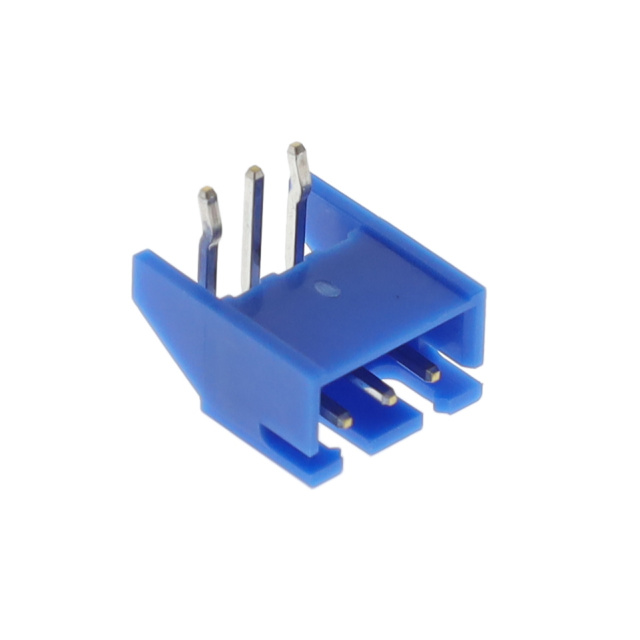

S3B-XH-A-E

Active

JST Sales America Inc.

S3B-XH-A-E(LF)(SN)

Search across all available documentation for this part.

Active

JST Sales America Inc.

S3B-XH-A-E(LF)(SN)

Technical Specifications

Parameters and characteristics for this part

Specification	S3B-XH-A-E

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	250 VAC

Part	Mounting Type	Insulation Color	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Material Flammability Rating	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Style	Insulation Material	Number of Rows	Contact Material	Voltage Rating	Fastening Type
JST Sales America Inc. S3B-XH-A-E	Through Hole Right Angle	Natural	Header	2.5 mm	0.098 in	0.24 in	6.1 mm	0.134 in	3.4 mm	Male Pin	Shrouded - 4 Wall	-25 °C	85 °C	Tin	Press-Fit Solder	UL94 V-0	Square	All	3 A	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	1	Brass	250 VAC	Detent Lock
JST Sales America Inc. S3B-XH-A-1	Through Hole Right Angle	Natural	Header	2.5 mm	0.098 in	0.24 in	6.1 mm	0.134 in	3.4 mm	Male Pin	Shrouded - 4 Wall	-25 °C	85 °C	Tin	Press-Fit Solder	UL94 V-0	Square	All	3 A	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6	1	Brass	250 VDC	Detent Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
