796382-1

Obsolete

TE Connectivity AMP Connectors

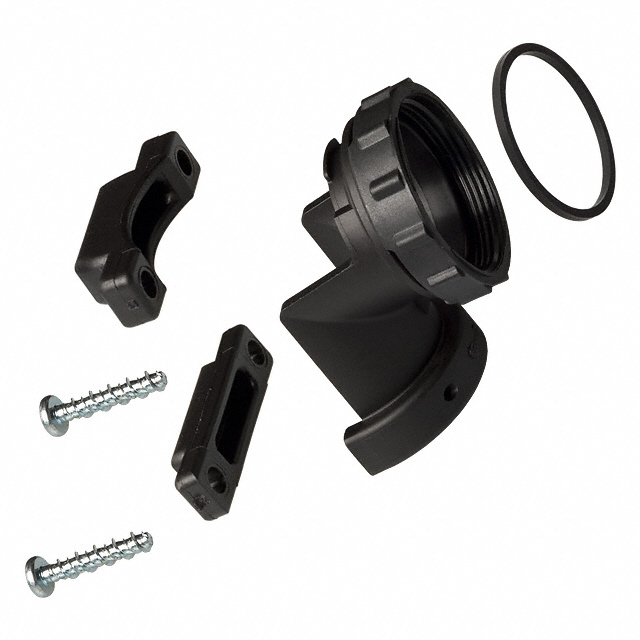

CONN BCKSH W/CLMP SZ23 1 3/8-18

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN BCKSH W/CLMP SZ23 1 3/8-18

Technical Specifications

Parameters and characteristics for this part

Specification	796382-1

Cable Exit	90 °
Cable Opening [custom]	0.703 in
Cable Opening [custom]	17.86 mm
Color	Black
Features	Clamp Screws
For Use With/Related Products	CPC Connectors
Includes	5 pcs - 3 pc Cable Clamp, 2 Screws
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	23
Thread Size	1 3/8-18 UNEF
Type	Backshell, Cable Clamp

CONN BCKSH W/CLMP SZ23 1 3/8-18

Part	Material	Includes	Thread Size	Type	Color	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	For Use With/Related Products	Cable Exit	Material Flammability Rating	Features
TE Connectivity AMP Connectors 796382-1	Polyamide (PA), Nylon	2 Screws, 5 pcs - 3 pc Cable Clamp	1 3/8-18 UNEF	Backshell, Cable Clamp	Black	23	0.703 in	17.86 mm	CPC Connectors	90 °	UL94 V-0	Clamp Screws

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black Connector Backshell, Cable Clamp 1 3/8-18 UNEF 23
