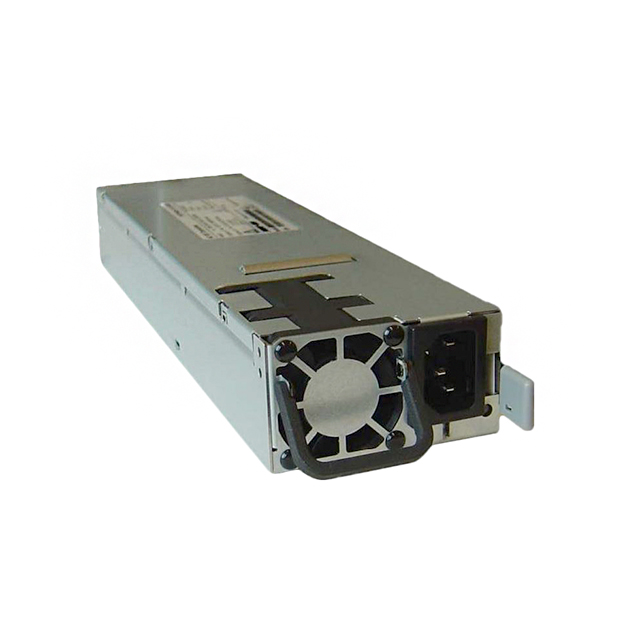

PET2000-12-074RA

Active

Bel Power Solutions

AC/DC CONVERTER 12V 2000W

Deep-Dive with AI

Search across all available documentation for this part.

PET2000-12-074RA

Active

Bel Power Solutions

AC/DC CONVERTER 12V 2000W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PET2000-12-074RA	PET2000 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CB	CE, CB, CQC, EAC, NEMKO
Current - Output (Max)	-	167 A
Current - Output 1	167 A	167 A
Efficiency	92.8 %	92.8 - 95 %
Features	PMBus™, Standby Output, Hot Swappable, PFC, I2C Interface, Remote Sense, Load Sharing	PMBus™, Standby Output, Hot Swappable, PFC, I2C Interface, Remote Sense, Load Sharing
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	1	1
Operating Temperature	-	40 °C
Operating Temperature	-	0 °C
Power (Watts)	2000 W	2000 W
Size / Dimension [x]	265 mm	265 mm
Size / Dimension [x]	10.43 in	10.43 in
Size / Dimension [y]	2.89 in	2.89 in
Size / Dimension [y]	73.5 mm	73.5 mm
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Type	Front End	Front End
Voltage - Input (Max)	-	72 V
Voltage - Input (Min)	-	40 V
Voltage - Input [Max]	264 VAC, 140 VAC	140 - 264 VAC
Voltage - Input [Min]	180 VAC, 90 VAC	90 - 180 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	12 V	12 V

PET2000 Series

AC/DC CONVERTER 12V 2000W

Part	Features	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Number of Outputs	Power (Watts)	Efficiency	Current - Output 1	Voltage - Isolation	Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
Bel Power Solutions PET2000-12-074RA	Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output	Rack Mount	140 VAC, 264 VAC	90 VAC, 180 VAC	12 V	1	2000 W	92.8 %	167 A	4.242 kV	Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CB, CE
Bel Power Solutions PET2000-12-074RD		Rack Mount			12 V		2000 W	95 %			Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CQC, EAC, NEMKO	72 V	40 °C	0 °C	167 A	40 V
Bel Power Solutions PET2000-12-074NA	Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output	Rack Mount	140 VAC, 264 VAC	90 VAC, 180 VAC	12 V	1	2000 W	92.8 %	167 A	4.242 kV	Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CB, CE
Bel Power Solutions PET2000-NAS446	Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output	Rack Mount	140 VAC, 264 VAC	90 VAC, 180 VAC	12 V	1	2000 W	92.8 %	167 A	4.242 kV	Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CB, CE
Bel Power Solutions PET2000-12-074ND		Rack Mount			12 V	1	2000 W	95 %			Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CQC, EAC, NEMKO	72 V			167 A	40 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 537.50

Description

General part information

PET2000 Series

Front End AC DC Converters 1 Output 12V 90 ~ 140 VAC, 180 ~ 264 VAC Input
