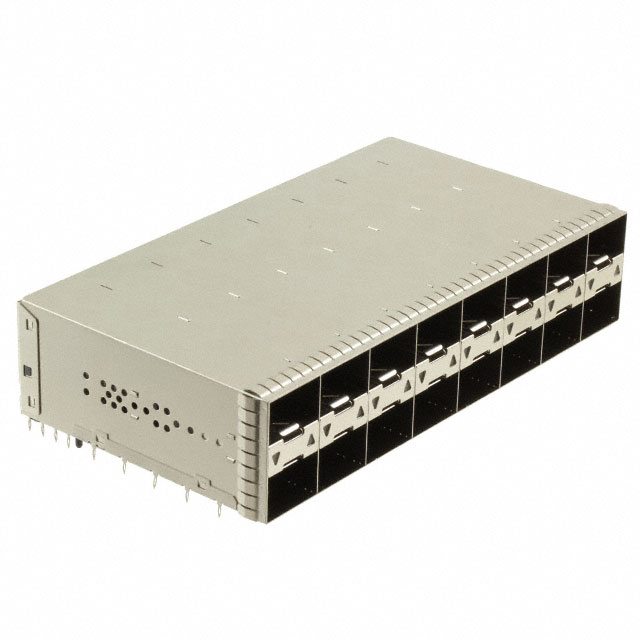

UE86-3G8620-30361

Active

Amphenol ICC (Commercial Products)

CONN SFP RCPT W/CAGE 2X8 320P RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UE86-3G8620-30361

Active

Amphenol ICC (Commercial Products)

CONN SFP RCPT W/CAGE 2X8 320P RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UE86-3G8620-30361	UE86 Series

Connector Style	Receptacle with Cage, Ganged (2x8)	Receptacle with Cage, Ganged (2x6), Ganged (2x8), Ganged (2x1), Ganged (2x4)
Connector Type	SFP	SFP, SFP+
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Light Pipe, EMI Shielded	Light Pipe, EMI Shielded
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	320	40 - 320
Number of Positions	-	240
Number of Positions	-	20
Number of Positions	-	4 - 8
Number of Positions	-	80
Number of Positions [x]	16	16 - 20
Number of Positions [y]	20	12 - 20
Termination	Press-Fit	Press-Fit

UE86 Series

CONN SFP RCPT W/CAGE 2X6 240P RA

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions [x]	Number of Positions [custom]	Number of Positions [y]	Termination	Connector Style	Features	Mounting Type	Number of Positions	Number of Positions [custom]	Number of Positions [custom]
Amphenol ICC (Commercial Products) UE86-3G6620-20361	Gold	0.76 Ám	30 Áin	SFP	20	240	12	Press-Fit	Ganged (2x6), Receptacle with Cage	EMI Shielded, Light Pipe	Through Hole, Right Angle
Amphenol ICC (Commercial Products) UE86-3G8620-00361	Gold	0.76 Ám	30 Áin	SFP	16		20	Press-Fit	Ganged (2x8), Receptacle with Cage	EMI Shielded	Through Hole, Right Angle	320
Amphenol ICC (Commercial Products) UE86-3G1620-00361	Gold	0.76 Ám	30 Áin	SFP				Press-Fit	Ganged (2x1), Receptacle with Cage	EMI Shielded	Through Hole, Right Angle	40
Amphenol ICC (Commercial Products) UE86-3G4620-20361	Gold	0.76 Ám	30 Áin	SFP				Press-Fit	Ganged (2x4), Receptacle with Cage	EMI Shielded, Light Pipe	Through Hole, Right Angle	160	20	8
Amphenol ICC (Commercial Products) UE86-3G4620-00361	Gold	0.76 Ám	30 Áin	SFP				Press-Fit	Ganged (2x4), Receptacle with Cage	EMI Shielded	Through Hole, Right Angle	160	20	8
Amphenol ICC (Commercial Products) UE86-3G6420-10361	Gold	0.76 Ám	30 Áin	SFP	20	240	12	Press-Fit	Ganged (2x6), Receptacle with Cage	EMI Shielded, Light Pipe	Through Hole, Right Angle
Amphenol ICC (Commercial Products) UE86-3G6620-10361	Gold	0.76 Ám	30 Áin	SFP	20	240	12	Press-Fit	Ganged (2x6), Receptacle with Cage	EMI Shielded, Light Pipe	Through Hole, Right Angle
Amphenol ICC (Commercial Products) UE86-3G8620-30361	Gold	0.76 Ám	30 Áin	SFP	16		20	Press-Fit	Ganged (2x8), Receptacle with Cage	EMI Shielded, Light Pipe	Through Hole, Right Angle	320
Amphenol ICC (Commercial Products) UE86-3G6620-00361	Gold	0.76 Ám	30 Áin	SFP	20	240	12	Press-Fit	Ganged (2x6), Receptacle with Cage	EMI Shielded	Through Hole, Right Angle
Amphenol ICC (Commercial Products) UE86-3G1420-10361	Gold	0.76 Ám	30 Áin	SFP				Press-Fit	Ganged (2x1), Receptacle with Cage	EMI Shielded, Light Pipe	Through Hole, Right Angle	40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 56.11

Description

General part information

UE86 Series

320 (16 x 20) Position SFP Receptacle with Cage, Ganged (2x8) Connector Press-Fit Through Hole, Right Angle

Documents

Technical documentation and resources
