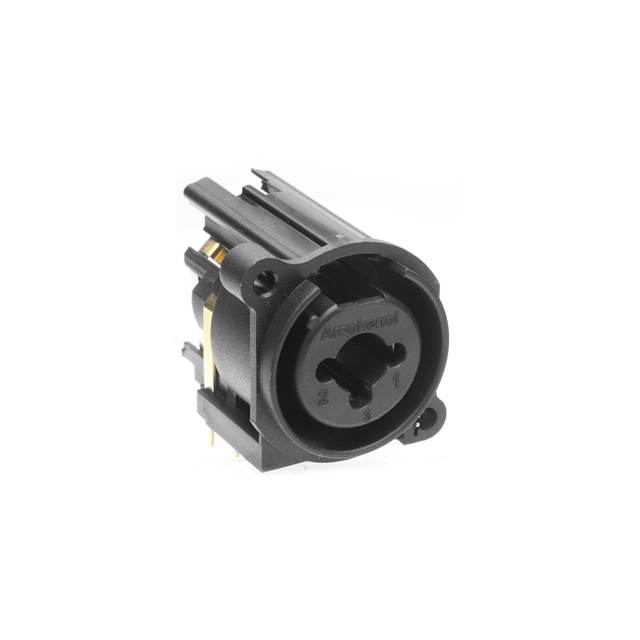

ACJC10AV2L BULK

Active

Amphenol Sine Systems Corp

1/4" STEREO/XLR PCB VERT 10 SKT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

1/4" STEREO/XLR PCB VERT 10 SKT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 2.80

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ACJC10AV2L BULK	ACJC10 Series

Body Color	Black	Black
Connector Type	Phone Jack, Dual	Phone Jack, Dual
Contact Material	Bronze, Brass	Bronze, Brass
Contact Material - Plating	Gold, Silver	Gold, Silver
Current Rating (Amps)	7.5 A	7.5 A
Features	Board Guide	Board Guide
Gender	Female	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Internal Switch(s)	Three Switches	Three Switches
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	11	11
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Hole Size	0.937 "	0.937 "
Panel Hole Size	23.8 mm	23.8 mm
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Kinked Pin, Solder	Solder, Kinked Pin, Solder

1/4" STEREO/XLR SOLDER 10 SKT

Part	Gender	Features	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Panel Hole Size	Panel Hole Size	Shielding	Internal Switch(s)	Body Color	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Contact Material	Connector Type	Current Rating (Amps)	Signal Lines	Mounting Type	Contact Material - Plating
Amphenol Sine Systems Corp ACJC10S BULK	Female	Board Guide	70 °C	-25 °C	Glass Filled, Nylon 6/6, Polyamide (PA66)	0.937 "	23.8 mm	Unshielded	Three Switches	Black	3	11	Solder	Brass, Bronze	Dual, Phone Jack	7.5 A	Stereo	Panel Mount, Through Hole	Gold, Silver
Amphenol Sine Systems Corp ACJC10AV2L BULK	Female	Board Guide	70 °C	-25 °C	Glass Filled, Nylon 6/6, Polyamide (PA66)	0.937 "	23.8 mm	Unshielded	Three Switches	Black	3	11	Kinked Pin, Solder	Brass, Bronze	Dual, Phone Jack	7.5 A	Stereo	Panel Mount, Through Hole	Gold, Silver
