SML-LXR2106USBC-TR
ActiveLumex Opto/Components Inc.

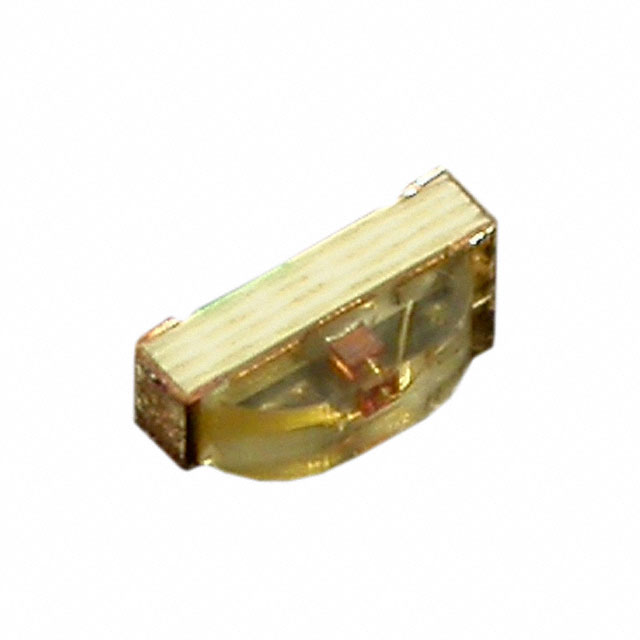

LED BLUE CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-LXR2106USBC-TR
ActiveLumex Opto/Components Inc.
LED BLUE CLEAR SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SML-LXR2106USBC-TR | SML-LXR2106 Series |
|---|---|---|
| Color | Blue | Blue, Red, Yellow, Green |
| Configuration | Standard | Standard |
| Current - Test | 20 mA | 20 mA |
| Height (Max) [Max] | 0.6 mm | 0.6 mm |
| Lens Color | Colorless | Colorless |
| Lens Size [x] | 1.7 mm | 1.7 mm |
| Lens Size [y] | 0.6 mm | 0.6 mm |
| Lens Style | Rectangle with Domed Top | Rectangle with Domed Top |
| Lens Transparency | Clear | Clear |
| Millicandela Rating | 80 mcd | 50 - 220 mcd |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead |
| Size / Dimension [x] | 2.1 mm | 2.1 mm |
| Size / Dimension [y] | 1 mm | 1 mm |
| Supplier Device Package | SMD | SMD |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V | 1.95 - 3.3 V |
| Wavelength - Peak | 460 nm | 460 - 645 nm |
SML-LXR2106 Series
LED BLUE CLEAR SMD R/A
| Part | Wavelength - Peak | Lens Transparency | Configuration | Millicandela Rating | Package / Case | Height (Max) [Max] | Lens Style | Viewing Angle | Color | Lens Color | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Current - Test | Supplier Device Package | Voltage - Forward (Vf) (Typ) | Lens Size [y] | Lens Size [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumex Opto/Components Inc. SML-LXR2106USBC-TR | 460 nm | Clear | Standard | 80 mcd | 2-SMD, No Lead | 0.6 mm | Rectangle with Domed Top | 120 ° | Blue | Colorless | Surface Mount, Right Angle | 1 mm | 2.1 mm | 20 mA | SMD | 3.3 V | 0.6 mm | 1.7 mm |
Lumex Opto/Components Inc. SML-LXR2106SIC-TR | 645 nm | Clear | Standard | 220 mcd | 2-SMD, No Lead | 0.6 mm | Rectangle with Domed Top | 120 ° | Red | Colorless | Surface Mount, Right Angle | 1 mm | 2.1 mm | 20 mA | SMD | 1.95 V | 0.6 mm | 1.7 mm |
Lumex Opto/Components Inc. SML-LXR2106SYC-TR | 590 nm | Clear | Standard | 150 mcd | 2-SMD, No Lead | 0.6 mm | Rectangle with Domed Top | 120 ° | Yellow | Colorless | Surface Mount, Right Angle | 1 mm | 2.1 mm | 20 mA | SMD | 2 V | 0.6 mm | 1.7 mm |
Lumex Opto/Components Inc. SML-LXR2106SUGC-TR | Clear | Standard | 50 mcd | 2-SMD, No Lead | 0.6 mm | Rectangle with Domed Top | 120 ° | Green | Colorless | Surface Mount, Right Angle | 1 mm | 2.1 mm | 20 mA | SMD | 2.1 V | 0.6 mm | 1.7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SML-LXR2106 Series
Blue LED Indication - Discrete 3.3V 2-SMD, No Lead
