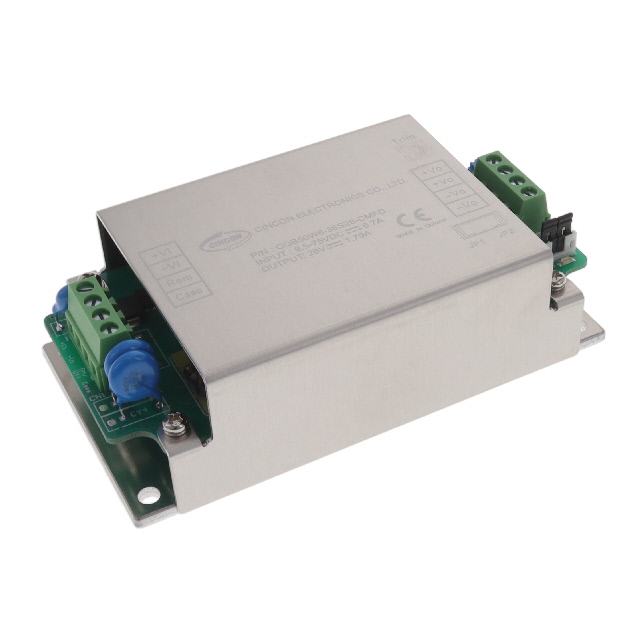

CQB50W8-36S28-CMFD

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 28V 50W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CQB50W8-36S28-CMFD

Active

Cincon Electronics Co. LTD

DC/DC CONVERTER 28V 50W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CQB50W8-36S28-CMFD

Applications	Railway, ITE (Commercial)
Approval Agency	CE
Efficiency	90 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Power (Watts)	50 W
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.49 "
Size / Dimension [y]	63.4 mm
Size / Dimension [z]	1.46 "
Size / Dimension [z]	37 mm
Type	Enclosed
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	9.5 V
Voltage - Isolation	4.2 kV
Voltage - Output 1	28 V

CQB50W8 Series

Part	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Mounting Type	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Power (Watts)	Current - Output (Max) [Max]
Cincon Electronics Co. LTD CQB50W8-36S28-CMFD	28 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Enclosed	1.46 "	2.49 "	4.6 "	37 mm	116.8 mm	63.4 mm	CE	50 W
Cincon Electronics Co. LTD CQB50W8-36S12-CMFD	12 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Enclosed	1.46 "	2.49 "	4.6 "	37 mm	116.8 mm	63.4 mm	CE	50 W	4.17 A
Cincon Electronics Co. LTD CQB50W8-36S15-CMFC	15 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Open Frame	1.26 in	2.4 "	4.6 "	32 mm	116.8 mm	61 mm	CE	50 W	3.33 A
Cincon Electronics Co. LTD CQB50W8-36S12-CMFC	12 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Open Frame	1.26 in	2.4 "	4.6 "	32 mm	116.8 mm	61 mm	CE	50 W	4.17 A
Cincon Electronics Co. LTD CQB50W8-36S48-CMFC	48 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Open Frame	1.26 in	2.4 "	4.6 "	32 mm	116.8 mm	61 mm	CE	50 W	1.05 A
Cincon Electronics Co. LTD CQB50W8-36S24-CMFD	24 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Enclosed	1.46 "	2.49 "	4.6 "	37 mm	116.8 mm	63.4 mm	CE	50 W	2.08 A
Cincon Electronics Co. LTD CQB50W8-36S24-CMFC	24 V	-40 °C	105 C	90 %	Chassis Mount	ITE (Commercial) Railway	4.2 kV	75 V	9.5 V	1	Open Frame	1.26 in	2.4 "	4.6 "	32 mm	116.8 mm	61 mm	CE	50 W	2.08 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 173.88
		5	$ 163.93
		10	$ 159.82
		25	$ 154.54
		50	$ 150.66

Description

General part information

CQB50W8 Series

Enclosed DC DC Converter 1 Output 28V 1.79A 75V Input

Documents

Technical documentation and resources
