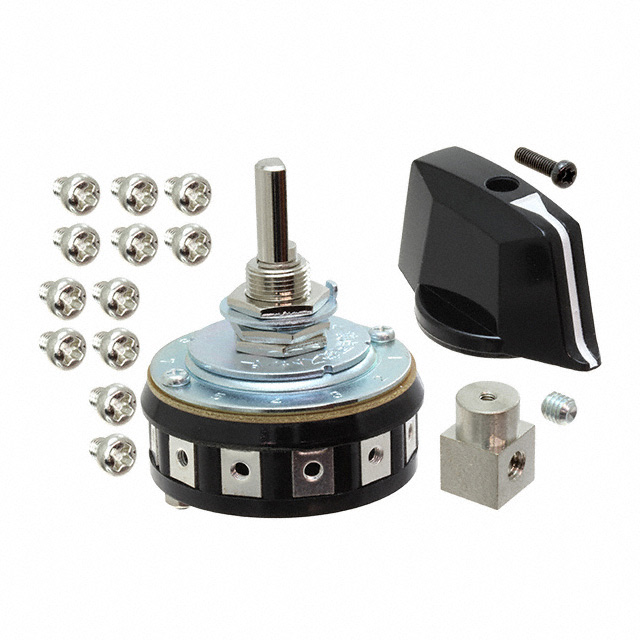

TS1N-AT432

Obsolete

NKK Switches

SWITCH ROTARY 2-11POS 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROTARY 2-11POS 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	TS1N-AT432

Actuator Length [x]	15.6 mm
Actuator Type	Knob
Angle of Throw	30 °
Circuit per Deck [custom]	SP11T
Contact Material	Phosphor Bronze
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A
Depth Behind Panel [z]	22 mm
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions [Max]	11
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	10.3 mm
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Number of Poles per Deck	Actuator Type	Actuator Length [x]	Voltage Rating - AC	Termination Style	Angle of Throw	Contact Timing	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]	Number of Positions [Max]	Number of Positions [Min]	Current Rating (Amps)	Contact Material	Number of Decks [custom]	Index Stops	Circuit per Deck [custom]
NKK Switches TS1N-AT432	1	Knob	15.6 mm	125 V	Screw Terminal	30 °	Non-Shorting	22 mm	10.3 mm	11	2	6 A	Phosphor Bronze	1	Adjustable	SP11T

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rotary Switch 2 ~ 11 Position SP11T 6A (AC) 125 VAC Panel Mount
