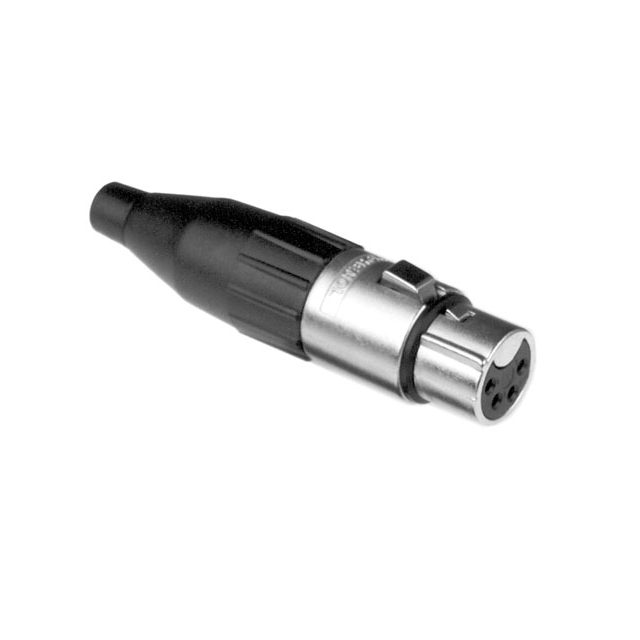

AC4F BULK

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 4 SKT BULK

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 4 SKT BULK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC4F BULK	AC4F Series

Applications	Audio	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)	Polyphenylene Ether (PPE)
Color	Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	10 A
Fastening Type	Latch Lock	Latch Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Black, Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Unshielded

METAL PLUG STR CORD 4 SKT BLACK

Part	Ingress Protection	Applications	Fastening Type	Material Flammability Rating	Primary Material	Contact Material	Contact Finish - Mating	Orientation	Mounting Type	Shell Material	Backshell Material, Plating	Shell Finish	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Color	Features	Number of Positions	Current Rating (Amps)	Connector Type
Amphenol Sine Systems Corp AC4FB BULK	IP40	Audio	Latch Lock	UL94 V-0	Metal	Brass	Silver	Keyed	Free Hanging (In-Line)	Zinc Die Cast	Polyphenylene Ether (PPE)	Black	XLR	-25 °C	75 ░C	Unshielded	Black	Backshell, Cable Clamp	4	10 A	Female Sockets, Plug
Amphenol Sine Systems Corp AC4F BULK	IP40	Audio	Latch Lock	UL94 V-0	Metal	Brass	Silver	Keyed	Free Hanging (In-Line)	Zinc Die Cast	Polyphenylene Ether (PPE)	Nickel	XLR	-25 °C	75 ░C	Unshielded	Silver	Backshell, Cable Clamp	4	10 A	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
