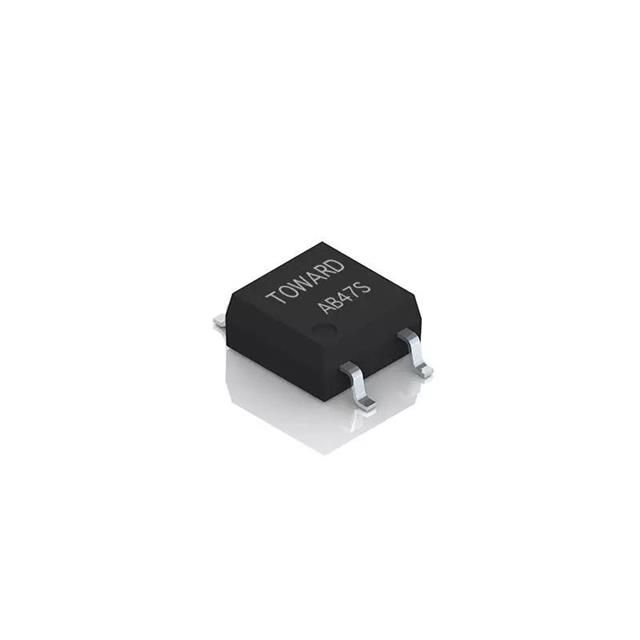

AB47S-H-R1

Active

Bright Toward Industrial Co., Ltd.

SSR RELAY SPST-NO 0-80V T&R

Search across all available documentation for this part.

Active

Bright Toward Industrial Co., Ltd.

SSR RELAY SPST-NO 0-80V T&R

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY SPST-NO 0-80V T&R

Part	On-State Resistance (Max)	Load Current	Termination Style	Voltage - Load [Max]	Package / Case	Package / Case	Package / Case	Mounting Type	Output Type	Supplier Device Package	Voltage - Input	Qualification	Grade
Bright Toward Industrial Co., Ltd. AB47S-H-R1	160 mOhms	1.25 A	Gull Wing	80 V	4-SOP	0.173 in	4.4 mm	Surface Mount	AC, DC	4-SOP	1.37 VDC
Bright Toward Industrial Co., Ltd. AB47S-Q-R1	160 mOhms	1.25 A	Gull Wing	80 V	4-SOP	0.173 in	4.4 mm	Surface Mount	AC, DC	4-SOP	1.37 VDC	AEC-Q101	Automotive
Bright Toward Industrial Co., Ltd. AB47S-Q		1.25 A	Gull Wing	80 V	4-SOP	0.173 in	4.4 mm	Surface Mount	AC, DC	4-SOP		AEC-Q101	Automotive
Bright Toward Industrial Co., Ltd. AB47S-R1	160 mOhms	1.25 A	Gull Wing	80 V	4-SOP	0.173 in	4.4 mm	Surface Mount	AC, DC	4-SOP	1.37 VDC
Bright Toward Industrial Co., Ltd. AB47S-H	160 mOhms	1.25 A	Gull Wing	80 V	4-SOP	0.173 in	4.4 mm	Surface Mount	AC, DC	4-SOP	1.37 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)

Technical documentation and resources
