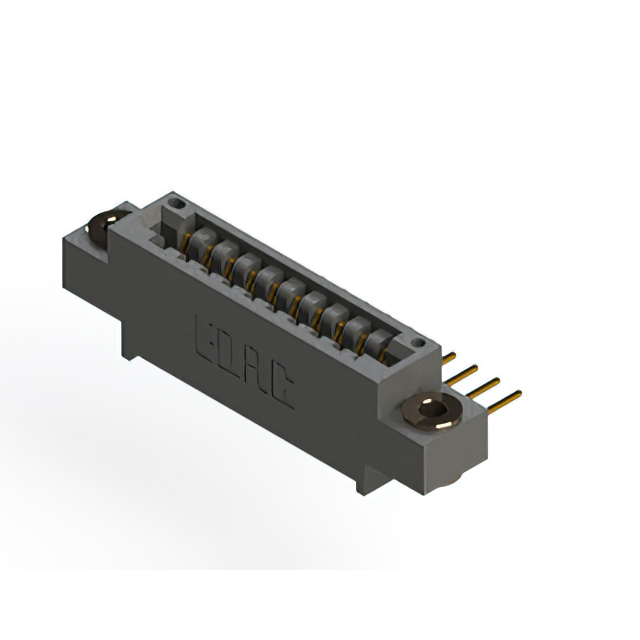

396-010-559-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 10POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-010-559-603
ActiveEDAC Inc.
CONN EDGE SGL FMALE 10POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-010-559-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
396-010 Series
...
| Part | Contact Material | Gender | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Number of Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Termination Rows | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Mounting Type | Termination | Card Type | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 1 | Gold | 10 | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Single | Through Hole | Solder | Non Specified - Single Edge | |||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 1 | Gold | 10 | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Single | Through Hole | Solder | Non Specified - Single Edge | |||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 2 | Gold | 10 | 10 Áin | 0.25 Ám | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Dual | Board Edge Straddle Mount | Solder Eyelet(s) | Non Specified - Dual Edge | Card Extender | ||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 2 | Gold | 10 | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | Dual | Board Edge Straddle Mount | Solder Eyelet(s) | Non Specified - Dual Edge | Card Extender | ||||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 2 | Gold | 10 | 10 Áin | 0.25 Ám | Dual | Through Hole Right Angle | Solder Wire Wrap | Non Specified - Dual Edge | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 2 | Gold | 10 | 10 Áin | 0.25 Ám | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Dual | Board Edge Straddle Mount | Solder | Non Specified - Dual Edge | Card Extender | ||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 1 | Gold | 10 | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Single | Through Hole Right Angle | Solder Wire Wrap | Non Specified - Single Edge | |||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 1 | Gold | 10 | 10 Áin | 0.25 Ám | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Single | Through Hole | Wire Wrap | Non Specified - Single Edge | |||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 2 | Gold | 10 | 10 Áin | 0.25 Ám | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Dual | Through Hole Right Angle | Solder Wire Wrap | Non Specified - Dual Edge | |||
EDAC Inc. | Copper Alloy | Female | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Black | Cantilever | 1 | Gold | 10 | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Single | Through Hole | Solder | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.03 | |
Description
General part information
396-010 Series
10 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
