TPS61107RGER
ActiveDUAL OUTPUT CONVERTER (BOOST DC/DC + LDO) FOR SINGLE/DUAL CELL APPS WITH 1.8V FIXED OUTPUT VOLTAGE
Deep-Dive with AI
Search across all available documentation for this part.

TPS61107RGER
ActiveDUAL OUTPUT CONVERTER (BOOST DC/DC + LDO) FOR SINGLE/DUAL CELL APPS WITH 1.8V FIXED OUTPUT VOLTAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | TPS61107RGER | TPS61107 Series |
---|---|---|
Frequency - Switching | 500 kHz | 500 kHz |
Mounting Type | Surface Mount | Surface Mount |
Number of Outputs [custom] | 2 | 2 |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -40 °C | -40 °C |

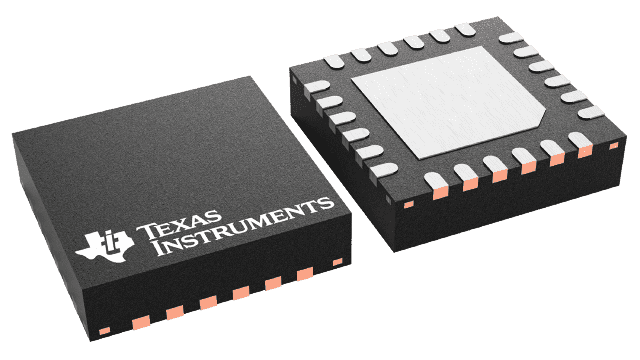

Package / Case | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad, 20-TSSOP |
Package / Case | - | 0.173 in |
Package / Case | - | 4.4 mm |
Supplier Device Package | 24-VQFN (4x4) | 24-VQFN (4x4), 20-TSSOP |
Topology | Step-Up (Boost) Synchronous (1), Linear (LDO) (1) | Step-Up (Boost) Synchronous (1), Linear (LDO) (1) |
Voltage - Supply [Max] | 3.3 V | 3.3 V |
Voltage - Supply [Min] | 0.8 V | 0.8 V |
Voltage/Current - Output 1 | 3.3 V, 1.8 A | 1.8 - 3.3 V |
Voltage/Current - Output 2 | 500 mA, 1.8 V | 1.8 - 500 mA |
w/LED Driver | False | False |
w/Sequencer | False | False |
w/Supervisor | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS61107 Series
Dual output converter (boost DC/DC + LDO) for single/dual cell apps with 1.8V fixed output voltage
Part | Topology | Frequency - Switching | Voltage/Current - Output 2 | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Min] | Operating Temperature [Max] | w/Supervisor | Number of Outputs [custom] | w/LED Driver | Mounting Type | Voltage/Current - Output 1 | Package / Case | w/Sequencer | Supplier Device Package | Package / Case | Package / Case |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS61107RGERThe TPS6110x devices provide a complete power supply solution for products powered by either one or two Alkaline, NiCd, or NiMH battery cells. The converter generates two stable output voltages that are either adjusted by an external resistor divider or fixed internally on the chip. It stays in operation with supply voltages down to 0.8 V. The implemented boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency.
The maximum peak current in the boost switch is limited to a value of 1800 mA.
The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. An auto discharge function allows discharging the output capacitors during shutdown mode. This is especially useful in microcontroller applications where the microcontroller or microprocessor should not remain active due to the stored voltage on the output capacitors. Programming the ADEN-pin disables this feature. A low-EMI mode is implemented to reduce ringing and in effect lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. A power good output at the boost stage provides additional control of cascaded power supply components.
The built-in LDO can be used for a second output voltage derived either from the boost output or directly from the battery. The output voltage of this LDO can be programmed by an external resistor divider or is fixed internally on the chip. The LDO can be enabled separately i.e., using the power good of the boost stage.
The device is packaged in a 20-pin TSSOP (20 PW) package or in a 24-pin QFN (24 RGE) package.
The TPS6110x devices provide a complete power supply solution for products powered by either one or two Alkaline, NiCd, or NiMH battery cells. The converter generates two stable output voltages that are either adjusted by an external resistor divider or fixed internally on the chip. It stays in operation with supply voltages down to 0.8 V. The implemented boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency.
The maximum peak current in the boost switch is limited to a value of 1800 mA.
The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. An auto discharge function allows discharging the output capacitors during shutdown mode. This is especially useful in microcontroller applications where the microcontroller or microprocessor should not remain active due to the stored voltage on the output capacitors. Programming the ADEN-pin disables this feature. A low-EMI mode is implemented to reduce ringing and in effect lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. A power good output at the boost stage provides additional control of cascaded power supply components.
The built-in LDO can be used for a second output voltage derived either from the boost output or directly from the battery. The output voltage of this LDO can be programmed by an external resistor divider or is fixed internally on the chip. The LDO can be enabled separately i.e., using the power good of the boost stage.
The device is packaged in a 20-pin TSSOP (20 PW) package or in a 24-pin QFN (24 RGE) package. | Linear (LDO) (1), Step-Up (Boost) Synchronous (1) | 500 kHz | 1.8 V, 500 mA | 0.8 V | 3.3 V | -40 °C | 85 °C | 2 | Surface Mount | 1.8 A, 3.3 V | 24-VFQFN Exposed Pad | 24-VQFN (4x4) | |||||
Texas Instruments TPS61107PWRPMIC - Voltage Regulators - Linear Switching 2 Output Step-Up (Boost) Synchronous (1), Linear (LDO) (1) 500kHz 20-TSSOP | Linear (LDO) (1), Step-Up (Boost) Synchronous (1) | 500 kHz | 1.8 V, 500 mA | 0.8 V | 3.3 V | -40 °C | 85 °C | 2 | Surface Mount | 1.8 A, 3.3 V | 20-TSSOP | 20-TSSOP | 0.173 in | 4.4 mm | |||
Texas Instruments TPS61107PWThe TPS6110x devices provide a complete power supply solution for products powered by either one or two Alkaline, NiCd, or NiMH battery cells. The converter generates two stable output voltages that are either adjusted by an external resistor divider or fixed internally on the chip. It stays in operation with supply voltages down to 0.8 V. The implemented boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency.
The maximum peak current in the boost switch is limited to a value of 1800 mA.
The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. An auto discharge function allows discharging the output capacitors during shutdown mode. This is especially useful in microcontroller applications where the microcontroller or microprocessor should not remain active due to the stored voltage on the output capacitors. Programming the ADEN-pin disables this feature. A low-EMI mode is implemented to reduce ringing and in effect lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. A power good output at the boost stage provides additional control of cascaded power supply components.
The built-in LDO can be used for a second output voltage derived either from the boost output or directly from the battery. The output voltage of this LDO can be programmed by an external resistor divider or is fixed internally on the chip. The LDO can be enabled separately i.e., using the power good of the boost stage.
The device is packaged in a 20-pin TSSOP (20 PW) package or in a 24-pin QFN (24 RGE) package.
The TPS6110x devices provide a complete power supply solution for products powered by either one or two Alkaline, NiCd, or NiMH battery cells. The converter generates two stable output voltages that are either adjusted by an external resistor divider or fixed internally on the chip. It stays in operation with supply voltages down to 0.8 V. The implemented boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency.
The maximum peak current in the boost switch is limited to a value of 1800 mA.
The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. An auto discharge function allows discharging the output capacitors during shutdown mode. This is especially useful in microcontroller applications where the microcontroller or microprocessor should not remain active due to the stored voltage on the output capacitors. Programming the ADEN-pin disables this feature. A low-EMI mode is implemented to reduce ringing and in effect lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. A power good output at the boost stage provides additional control of cascaded power supply components.
The built-in LDO can be used for a second output voltage derived either from the boost output or directly from the battery. The output voltage of this LDO can be programmed by an external resistor divider or is fixed internally on the chip. The LDO can be enabled separately i.e., using the power good of the boost stage.
The device is packaged in a 20-pin TSSOP (20 PW) package or in a 24-pin QFN (24 RGE) package. | Linear (LDO) (1), Step-Up (Boost) Synchronous (1) | 500 kHz | 1.8 V, 500 mA | 0.8 V | 3.3 V | -40 °C | 85 °C | 2 | Surface Mount | 1.8 A, 3.3 V | 20-TSSOP | 20-TSSOP | 0.173 in | 4.4 mm |
Description
General part information
TPS61107 Series
The TPS6110x devices provide a complete power supply solution for products powered by either one or two Alkaline, NiCd, or NiMH battery cells. The converter generates two stable output voltages that are either adjusted by an external resistor divider or fixed internally on the chip. It stays in operation with supply voltages down to 0.8 V. The implemented boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using a synchronous rectifier to obtain maximum efficiency.
The maximum peak current in the boost switch is limited to a value of 1800 mA.
The converter can be disabled to minimize battery drain. During shutdown, the load is completely disconnected from the battery. An auto discharge function allows discharging the output capacitors during shutdown mode. This is especially useful in microcontroller applications where the microcontroller or microprocessor should not remain active due to the stored voltage on the output capacitors. Programming the ADEN-pin disables this feature. A low-EMI mode is implemented to reduce ringing and in effect lower radiated electromagnetic energy when the converter enters the discontinuous conduction mode. A power good output at the boost stage provides additional control of cascaded power supply components.
