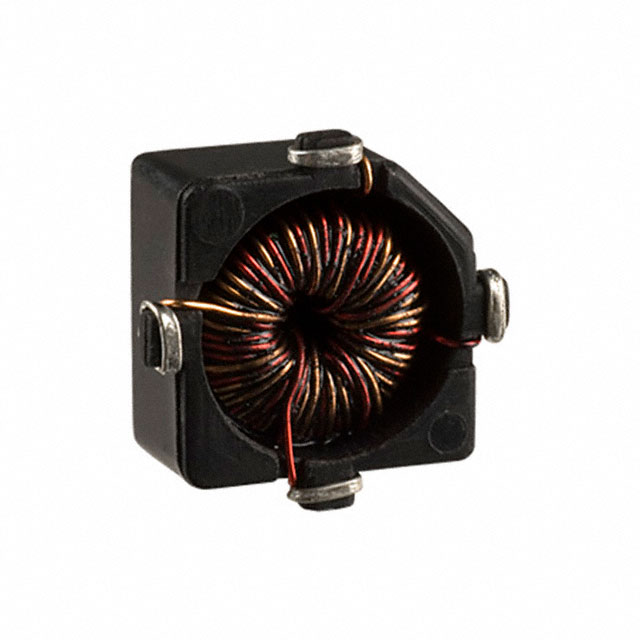

PM3604-150-RC

Active

Bourns Inc.

INDUCT ARRAY 2 COIL 150UH SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM3604-150-RC

Active

Bourns Inc.

INDUCT ARRAY 2 COIL 150UH SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM3604-150-RC

Current Rating - Parallel	780 mA
DC Resistance (DCR) - Parallel [Max]	320 mOhm
DC Resistance (DCR) - Series [Max]	1.28 Ohm
Height [z]	0.265 in
Height [z]	6.73 mm
Inductance - Connected In Parallel	150 µH
Inductance - Connected In Series	600 µH
Mounting Type	Surface Mount
Number of Coils	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	0.55 in
Size / Dimension [x]	13.97 mm
Size / Dimension [y]	0.452 in
Size / Dimension [y]	11.48 mm
Tolerance	20 %

PM3604 Series

Part	DC Resistance (DCR) - Parallel	Mounting Type	Tolerance	Number of Coils	Inductance - Connected In Parallel	Current Rating - Series [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance - Connected In Series	Shielding	Package / Case	Current Rating - Parallel	DC Resistance (DCR) - Series [Max]	Height [z]	Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) - Parallel [Max]	Current Rating - Series [custom]	Current Rating - Series
Bourns Inc. PM3604-33-B	78 mOhm	Surface Mount	20 %	2	33 µH	800 mA	0.452 in	11.48 mm	0.55 in	13.97 mm	132 µH	Unshielded	Nonstandard	1.6 A	310 mOhm	0.265 in	6.73 mm	-55 °C	125 °C
Bourns Inc. PM3604-150-RC		Surface Mount	20 %	2	150 µH		0.452 in	11.48 mm	0.55 in	13.97 mm	600 µH	Unshielded	Nonstandard	780 mA	1.28 Ohm	0.265 in	6.73 mm	-55 °C	125 °C	320 mOhm
Bourns Inc. PM3604-20-RC		Surface Mount	20 %	2	20 µH	1.01 A	0.452 in	11.48 mm	0.55 in	13.97 mm	80 µH	Unshielded	Nonstandard	2.02 A	200 mOhm	0.265 in	6.73 mm	-55 °C	125 °C	49 mOhm
Bourns Inc. PM3604-250-RC	530 mOhm	Surface Mount	20 %	2	250 µH	300 mA	0.452 in	11.48 mm	0.55 in	13.97 mm	1 mH	Unshielded	Nonstandard	600 mA	2.12 Ohm	0.265 in	6.73 mm	-55 °C	125 °C
Bourns Inc. PM3604-25-B-RC	54 mOhm	Surface Mount	20 %	2	25 µH		0.452 in	11.48 mm	0.55 in	13.97 mm	100 µH	Unshielded	Nonstandard	1.91 A	220 mOhm	0.265 in	6.73 mm	-55 °C	125 °C		960 mA
Bourns Inc. PM3604-50-B-RC	120 mOhm	Surface Mount	20 %	2	50 µH		0.452 in	11.48 mm	0.55 in	13.97 mm	200 µH	Unshielded	Nonstandard	1.28 A	480 mOhm	0.265 in	6.73 mm	-55 °C	125 °C		640 mA
Bourns Inc. PM3604-100-RC	210 mOhm	Surface Mount	20 %	2	100 µH		0.452 in	11.48 mm	0.55 in	13.97 mm	400 µH	Unshielded	Nonstandard	980 mA	840 mOhm	0.265 in	6.73 mm	-55 °C	125 °C		490 mA
Bourns Inc. PM3604-5-RC	19 mOhm	Surface Mount	20 %	2	5 µH		0.452 in	11.48 mm	0.55 in	13.97 mm	20 µH	Unshielded	Nonstandard	3.3 A	76 mOhm	0.265 in	6.73 mm	-55 °C	125 °C			1.65 A
Bourns Inc. PM3604-10-RC	28 mOhm	Surface Mount	20 %	2	10 µH	1.35 A	0.452 in	11.48 mm	0.55 in	13.97 mm	40 µH	Unshielded	Nonstandard	2.7 A	110 mOhm	0.265 in	6.73 mm	-55 °C	125 °C
Bourns Inc. PM3604-68-B-RC	140 mOhm	Surface Mount	20 %	2	68 µH		0.452 in	11.48 mm	0.55 in	13.97 mm	272 µH	Unshielded	Nonstandard	1.19 A	560 mOhm	0.265 in	6.73 mm	-55 °C	125 °C			600 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.37
		10	$ 1.16
		25	$ 1.07
		50	$ 0.96
		100	$ 0.80
	Digi-Reel®	1	$ 1.37
		10	$ 1.16
		25	$ 1.07
		50	$ 0.96
		100	$ 0.80
	Tape & Reel (TR)	400	$ 0.80

Description

General part information

PM3604 Series

Unshielded 2 Coil Inductor Array 600 µH Inductance - Connected in Series 150 µH Inductance - Connected in Parallel 320mOhm Max DC Resistance (DCR) - Parallel 780 mA Nonstandard
