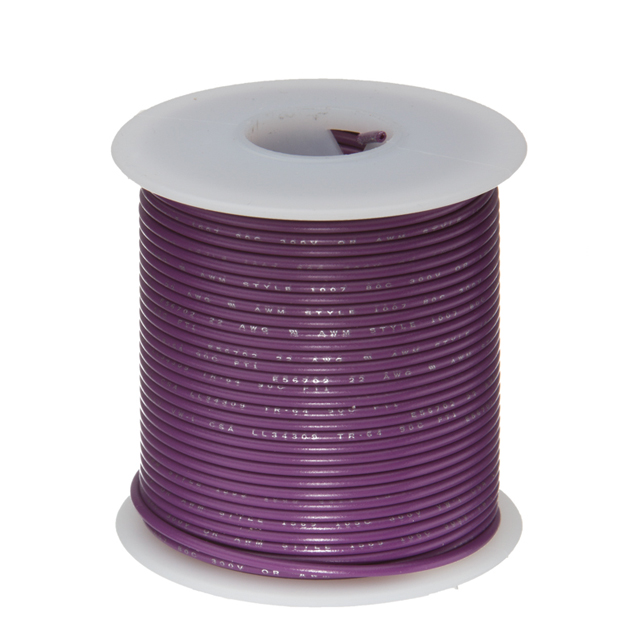

20UL1007SLDVIO

Active

Remington Industries

HOOK-UP SOLID 20AWG VIO 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20UL1007SLDVIO

Active

Remington Industries

HOOK-UP SOLID 20AWG VIO 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20UL1007SLDVIO

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant
Jacket (Insulation) Diameter [diameter]	1.78 mm
Jacket (Insulation) Diameter [diameter]	0.07 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in
Jacket (Insulation) Thickness	0.41 mm
Jacket Color	Violet
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature	105 C
Ratings	UL Style 1007
Voltage	300 V
Wire Gauge	20 AWG

20UL1007 Series

...

Part	Jacket (Insulation) Material	Operating Temperature	Conductor Material	Wire Gauge	Length	Length	Voltage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Ratings	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Values	Kit Type
Remington Industries 20UL1007SLDGRE250	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG	3000 "	76.2 m	300 V	Green	1.63 mm	0.064 in	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant
Remington Industries 20UL1007SLDVIO	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG			300 V	Violet	1.78 mm	0.07 "	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	30.5 m	100 ft
Remington Industries 20UL1007SLDWHI500	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG			300 V		1.63 mm	0.064 in	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	152.4 m	500 '
Remington Industries 20UL1007SLDRED500	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG			300 V	Red	1.78 mm	0.07 "	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	152.4 m	500 '
Remington Industries 20UL1007STRWHI25	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG			300 V		1.78 mm	0.07 "	Hook-Up	UL Style 1007		0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	7.62 m	25 ft	30 AWG	10
Remington Industries 20UL1007SLDGRE	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG			300 V	Green	1.78 mm	0.07 "	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	30.5 m	100 ft
Remington Industries 20UL1007STRKIT																					6 Adapters 25 ft	Hook Up Wire 20 AWG
Remington Industries 20UL1007SLDWHI250	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG	3000 "	76.2 m	300 V		1.63 mm	0.064 in	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant
Remington Industries 20UL1007SLDWHI25	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG			300 V		1.63 mm	0.064 in	Hook-Up	UL Style 1007	Solid	0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	7.62 m	25 ft
Remington Industries 20UL1007STRGRA1000	Poly-Vinyl Chloride (PVC)	105 C	Copper Tinned	20 AWG	1000 ft	304.8 m	300 V	Gray	1.78 mm	0.07 "	Hook-Up	UL Style 1007		0.016 in	0.41 mm	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant			30 AWG	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 20.06

Description

General part information

20UL1007 Series

20 AWG Hook-Up Wire Solid Violet 300V 100.0' (30.5m)

Documents

Technical documentation and resources
