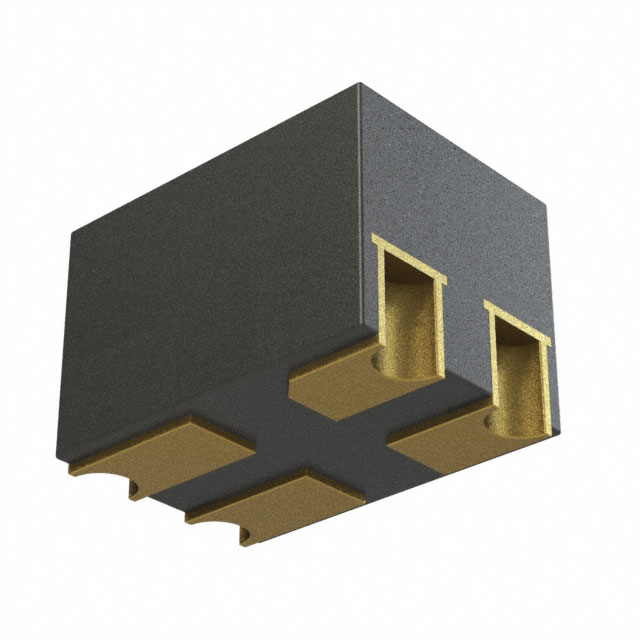

TLP3476S(TP,E
ActiveToshiba Semiconductor and Storage
PHOTORELAY; HIGH SPEED; ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLP3476S(TP,E
ActiveToshiba Semiconductor and Storage
PHOTORELAY; HIGH SPEED; ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP3476S(TP,E |
|---|---|
| Load Current | 400 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 1.5 Ohms |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-SMD (0.079", 2.00mm) |
| Supplier Device Package | S-VSON4T (2x1.45) |
| Voltage - Input | 1.24 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.57 | |
| 10 | $ 4.95 | |||
| 100 | $ 3.99 | |||
| 500 | $ 3.67 | |||
| Digi-Reel® | 1 | $ 6.57 | ||
| 10 | $ 4.95 | |||
| 100 | $ 3.99 | |||
| 500 | $ 3.67 | |||
| Tape & Reel (TR) | 2500 | $ 3.00 | ||
Description
General part information
TLP347 Series
Solid State SPST-NO (1 Form A) 4-SMD (0.079", 2.00mm)
