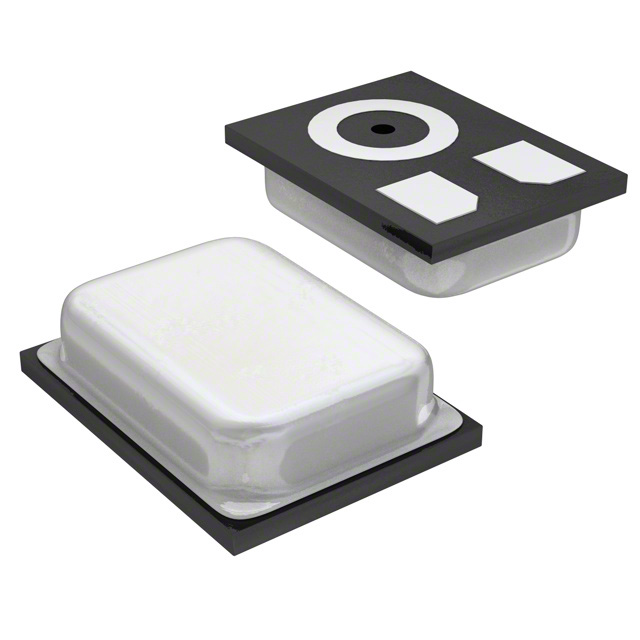

INMP404ACEZ-R7

Obsolete

TDK InvenSense

MIC MEMS ANALOG OMNI -38DB

Search across all available documentation for this part.

Obsolete

TDK InvenSense

MIC MEMS ANALOG OMNI -38DB

Technical Specifications

Parameters and characteristics for this part

MIC MEMS ANALOG OMNI -38DB

Part	Shape	Direction	Type	Port Location	Termination	S/N Ratio	Height (Max) [Max]	Height (Max)	Frequency Range [Max]	Frequency Range [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Output Type	Voltage Range [Min]	Voltage Range [Max]	Impedance
TDK InvenSense INMP404ACEZ-R7	Rectangular	Omnidirectional	MEMS (Silicon)	Bottom	Solder Pads	62 dB	0.039 in	0.98 mm	15 kHz	100 Hz	3.35 mm	0.098 in	0.132 "	2.5 mm	Analog	1.5 V	3.3 V	200 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Hz ~ 15 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.3 V Omnidirectional (-38dB ±3dB @ 94dB SPL) Solder Pads
