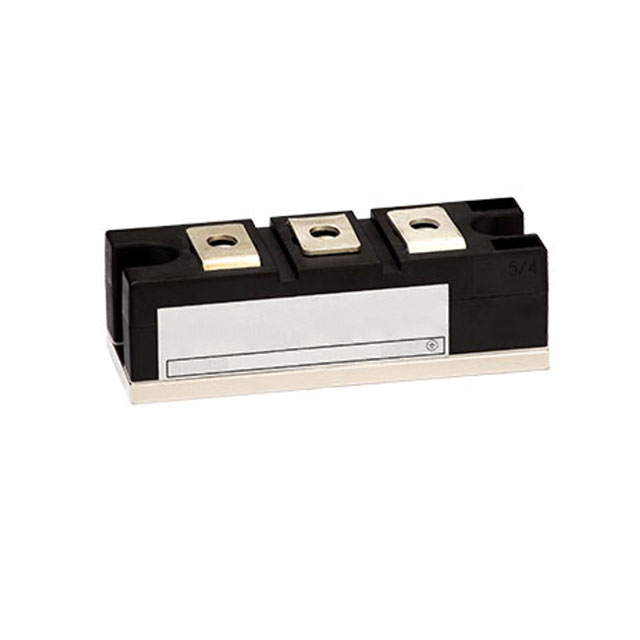

DD171N12KKHPSA2

Active

Infineon Technologies

DIODE MODULE GP 1200V 171A

Search across all available documentation for this part.

Active

Infineon Technologies

DIODE MODULE GP 1200V 171A

Technical Specifications

Parameters and characteristics for this part

Specification	DD171N12KKHPSA2

Current - Average Rectified (Io) (per Diode)	171 A
Current - Reverse Leakage @ Vr	20 mA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction	150 ¯C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.26 V

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Mounting Type	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Infineon Technologies DD171N12KKHPSA2	20 mA	150 ¯C	1 Pair Series Connection	Standard	1.2 kV	Module	171 A	1.26 V	Standard Recovery >500ns	200 mA	Chassis Mount
Infineon Technologies DD171N12KHPSA1	20 mA		1 Pair Common Cathode	Standard	1.2 kV	Module	171 A	1.26 V	Standard Recovery >500ns	200 mA	Chassis Mount	Module	150 °C	-40 °C
Infineon Technologies DD171N12KAHPSA2	20 mA	150 ¯C	1 Pair Series Connection	Standard	1.2 kV	Module	171 A	1.26 V	Standard Recovery >500ns	200 mA	Chassis Mount
Infineon Technologies DD171N12KKHPSA1	20 mA	150 ¯C	1 Pair Series Connection	Standard	1.2 kV	Module	171 A	1.26 V	Standard Recovery >500ns	200 mA	Chassis Mount	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 1200 V 171A Chassis Mount Module
