1213C SL002

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 3 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComm, Control, Industrial Cable Catalog Technical Data Sheet EN +1

1213C SL002

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 3 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M

Deep-Dive with AI

DocumentsComm, Control, Industrial Cable Catalog Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1213C SL002	1213C Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	32 AWG	32 AWG
Conductor Strand [custom]	7	7
Features	Drain Wire	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.14 mm	4.14 mm
Jacket (Insulation) Diameter [diameter]	0.163 in	0.163 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	3	3
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

1213C Series

CABLE 3COND 24AWG SHLD 1000'

Part	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Number of Conductors	Features	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Usage	Jacket Color	Conductor Insulation	Length	Length	Cable Type	Conductor Material	Voltage	Shield Coverage	Length [x]	Length [x]
ALPHA WIRE 1213C SL001	32 AWG	7	Poly-Vinyl Chloride (PVC)	3	Drain Wire	Foil	-20 C	80 C	4.14 mm	0.163 in	Aluminum	24 AWG	Communication, Control	Slate	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Multi-Conductor	Copper, Tinned	300 V	100 %
ALPHA WIRE 1213C SL002	32 AWG	7	Poly-Vinyl Chloride (PVC)	3	Drain Wire	Foil	-20 C	80 C	4.14 mm	0.163 in	Aluminum	24 AWG	Communication, Control	Slate	Poly-Vinyl Chloride (PVC)			Multi-Conductor	Copper, Tinned	300 V	100 %	500 '	152.4 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 465.07
Newark	Spool of 500	1	$ 604.46

Description

General part information

1213C Series

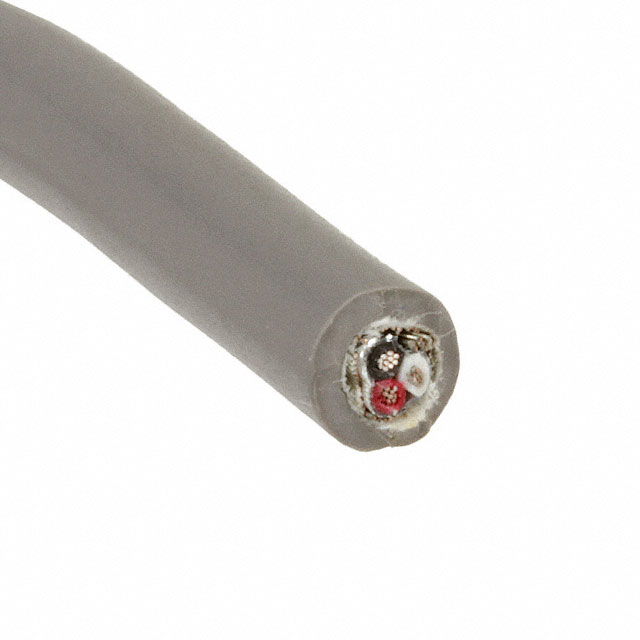

The 1213C SL002 is a 3-core Shielded Cable with tinned copper conductor and a PVC insulator. This multi-core cable comes with a slate PVC jacket, aluminium/Mylar tape foil shield and foil facing outward.

Documents

Technical documentation and resources

Comm, Control, Industrial Cable Catalog

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
