SJOOW1004-25

Active

Remington Industries

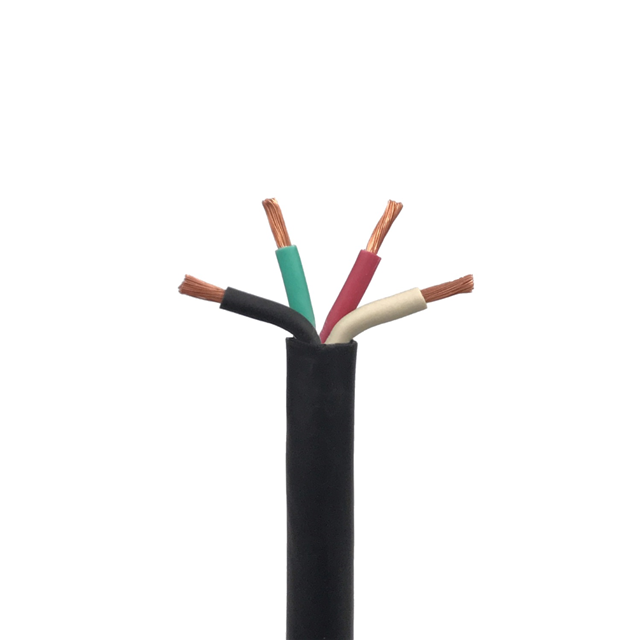

PORTABLE CORD 4CON 10AWG BLK 25'

Search across all available documentation for this part.

Active

Remington Industries

PORTABLE CORD 4CON 10AWG BLK 25'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SJOOW1004-25	SJOOW1004 Series

Cable Type	Portable Cord	Portable Cord
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	104	104
Conductor Strand [custom]	30	30
Features	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant	Oil Resistant, Abrasion Resistant, Chemical Resistant, Water Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.655 "	0.655 "
Jacket (Insulation) Diameter [diameter]	16.64 mm	16.64 mm
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)	Chlorinated Polyethylene (CPE)
Jacket (Insulation) Thickness	1.143 mm	1.143 mm
Jacket (Insulation) Thickness	0.045 in	0.045 in
Jacket Color	Black	Black
Length	-	15.24 m
Length [x]	25 ft	25 - 100 ft
Length [x]	7.62 m	7.62 - 30.5 m
Number of Conductors	4	4
Operating Temperature	194 °F	194 °F
Ratings	UL Style SJOOW	UL Style SJOOW
Usage	Portable Power Tools and Equipment	Portable Power Tools and Equipment
Voltage	300 V	300 V
Wire Gauge	10 AWG	10 AWG

PORTABLE CORD 4CON 10AWG BLK 25'

Part	Cable Type	Operating Temperature	Voltage	Features	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Number of Conductors	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Jacket (Insulation) Material	Ratings	Jacket Color	Conductor Insulation	Length
Remington Industries SJOOW1004-25	Portable Cord	194 °F	300 V	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	Copper, Bare	1.143 mm	0.045 in	104	30	10 AWG	4	Portable Power Tools and Equipment	0.655 "	16.64 mm	25 ft	7.62 m	Chlorinated Polyethylene (CPE)	UL Style SJOOW	Black	Ethylene Propylene Terpolymer Rubber (EPDM)
Remington Industries SJOOW1004-100	Portable Cord	194 °F	300 V	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	Copper, Bare	1.143 mm	0.045 in	104	30	10 AWG	4	Portable Power Tools and Equipment	0.655 "	16.64 mm	100 ft	30.5 m	Chlorinated Polyethylene (CPE)	UL Style SJOOW	Black	Ethylene Propylene Terpolymer Rubber (EPDM)
Remington Industries SJOOW1004-50	Portable Cord	194 °F	300 V	Abrasion Resistant, Chemical Resistant, Oil Resistant, UV Resistant, Water Resistant	Copper, Bare	1.143 mm	0.045 in	104	30	10 AWG	4	Portable Power Tools and Equipment	0.655 "	16.64 mm	50 ft		Chlorinated Polyethylene (CPE)	UL Style SJOOW	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	15.24 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 143.13

General part information

4 Conductor Portable Cord Cable Black 10 AWG 25.00' (7.62m)

Technical documentation and resources
