61-8212.22

Active

EAO

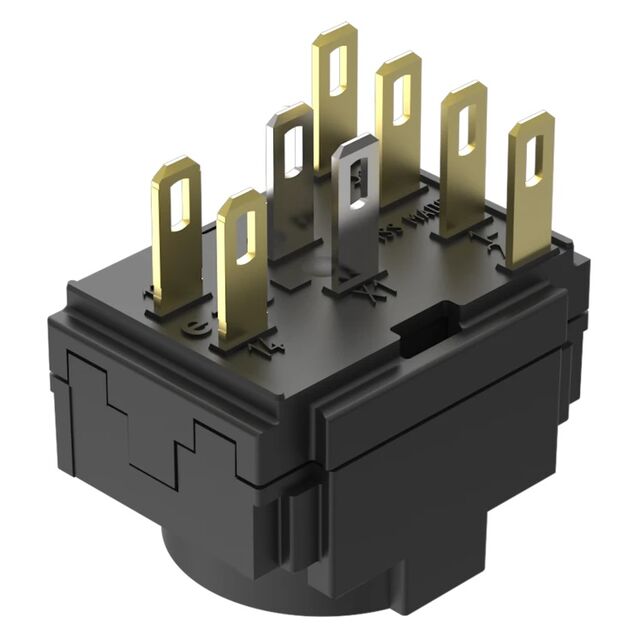

CONTACT BLOCK SPST-NO 5A 250V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK SPST-NO 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	61-8212.22	61-8212 Series

(Select First, Then Apply Filters) Compatible Series	EAO, 61	EAO, 61
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	250 VAC, 5 A	5 - 250 VAC
Requires	Switch Body	Switch Body
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Plug, Quick Connect, Solder
Termination Style	2.8 mm	2.8 mm

CONTACT BLOCK SPST-NO 5A 250V

Part	Requires	Circuit	(Select First, Then Apply Filters) Compatible Series	Termination Style	Contact Rating @ Voltage	Termination Style	Termination Style
EAO 61-8212.12	Switch Body	SPST-NO	61, EAO	Plug	5 A, 250 VAC
EAO 61-8212.22	Switch Body	SPST-NO	61, EAO	Quick Connect, Solder	5 A, 250 VAC	0.11 in	2.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Configurable Contact Block SPST-NO 5A @ 250VAC/DC
