AXT440224

Active

Panasonic Electric Works

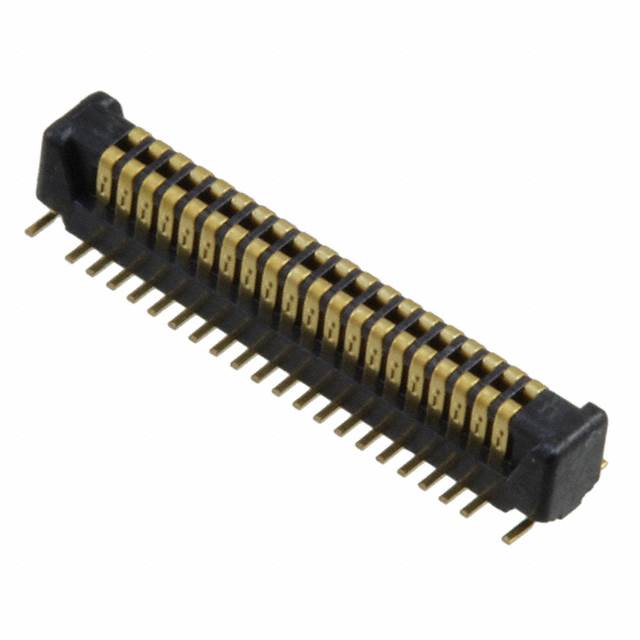

CONN HDR 40POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT440224

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	1.73 mm
Height Above Board	0.068 in
Mated Stacking Heights	2 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Height Above Board	Height Above Board	Number of Positions	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish	Mounting Type	Number of Rows	Connector Type
Panasonic Electric Works AXT440224	Solder Retention	1.73 mm	0.068 in	40	0.016 in	0.4 mm	2 mm	Gold	Surface Mount	2	Header Center Strip Contacts
Panasonic Electric Works AXT440114	Board Guide Solder Retention	1.25 mm	0.049 in	40	0.016 in	0.4 mm	1.5 mm 2.5 mm	Gold	Surface Mount	2	Header Center Strip Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3000	$ 2.30

General part information

40 Position Connector Header, Center Strip Contacts Surface Mount Gold
