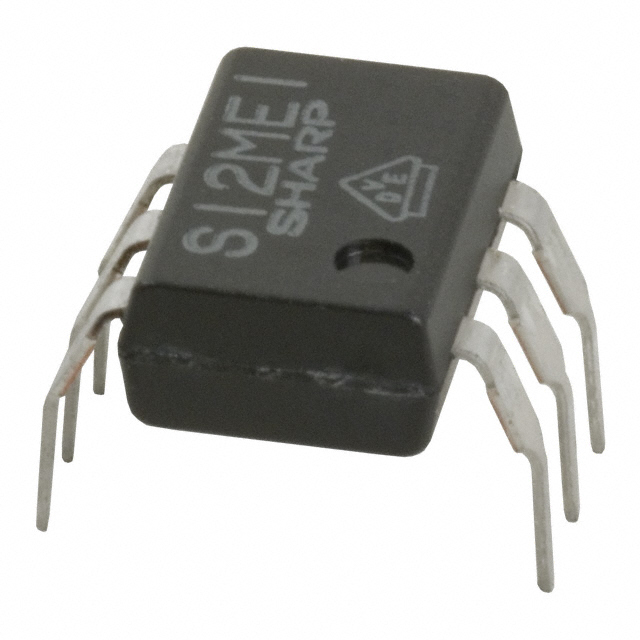

S12ME1FY

Obsolete

Sharp Microelectronics

OPTOISOLATOR 4KV SCR 1CH 6-DIP

Search across all available documentation for this part.

Obsolete

Sharp Microelectronics

OPTOISOLATOR 4KV SCR 1CH 6-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	S12ME1FY

Approval Agency	VDE, BSI, UR
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	1 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	200 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	SCR
Package / Case	7.62 mm
Package / Case	6-DIP
Package / Case	0.3 in, 5 Leads
Static dV/dt (Min) [Min]	3 V/µs
Supplier Device Package	6-DIP
Turn On Time	50 µs
Voltage - Isolation	4000 Vrms
Voltage - Off State	400 V
Zero Crossing Circuit	False

OPTOISOLATOR 4KV SCR 1CH 6-DIP

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - LED Trigger (Ift) (Max) [Max]	Voltage - Off State	Mounting Type	Voltage - Isolation	Zero Crossing Circuit	Number of Channels	Package / Case	Package / Case	Package / Case	Current - Hold (Ih)	Approval Agency	Output Type	Turn On Time	Current - On State (It (RMS)) (Max)	Current - DC Forward (If) (Max)	Static dV/dt (Min) [Min]
Sharp Microelectronics S12ME1FY	6-DIP	100 °C	-30 ░C	10 mA	400 V	Through Hole	4000 Vrms		1	7.62 mm	6-DIP	0.3 in, 5 Leads	1 mA	BSI, UR, VDE	SCR	50 µs	200 mA	50 mA	3 V/µs
