392-038-559-212

Active

EDAC Inc.

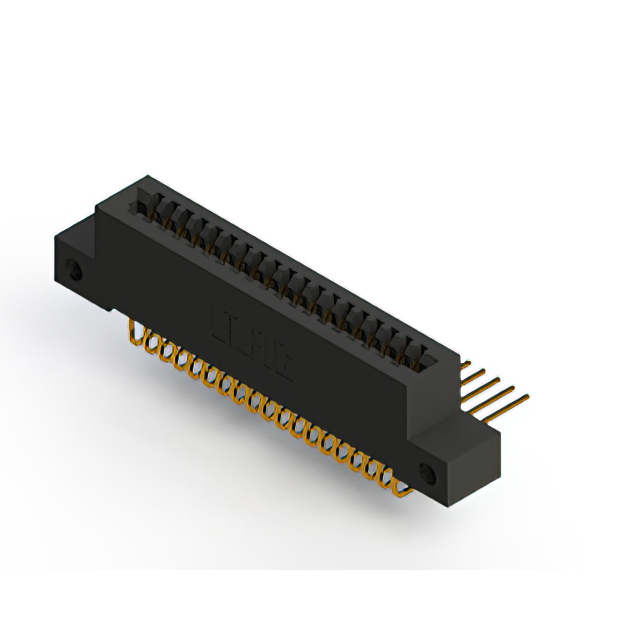

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

392-038-559-212

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-038-559-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

392-038 Series

...

Part	Material - Insulation	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Number of Positions/Bay/Row [custom]	Termination	Contact Material	Gender	Contact Finish	Number of Positions	Color	Contact Type	Card Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type
EDAC Inc. 392-038-559-212	Polyester Thermoplastic	2.54 mm	0.1 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	2	19	Solder Wire Wrap	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle
EDAC Inc. 392-038-521-108	Polyester Thermoplastic	2.54 mm	0.1 in		4-40 Flush Mount Threaded Insert Top Opening		1	38	Solder	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-544-108	Polyester Thermoplastic	2.54 mm	0.1 in		4-40 Flush Mount Threaded Insert Top Opening		1	38	Wire Wrap	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-521-107	Polyester Thermoplastic	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening		1	38	Solder	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-523-103	Polyester Thermoplastic	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1	38	Solder	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-540-203	Polyester Thermoplastic	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2	19	Wire Wrap	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-520-102	Polyester Thermoplastic	2.54 mm	0.1 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1	38	Solder	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-540-207	Polyester Thermoplastic	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening		2	19	Wire Wrap	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-540-102	Polyester Thermoplastic	2.54 mm	0.1 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1	38	Wire Wrap	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Single Edge	1	10 Áin	0.25 Ám	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole
EDAC Inc. 392-038-520-207	Polyester Thermoplastic	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening		2	19	Solder	Copper Alloy	Female	Gold	38	Black	Cantilever	Non Specified - Dual Edge	2	10 Áin	0.25 Ám	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.05
Newark	Each	1	$ 13.49
		100	$ 10.12
		250	$ 8.86
		500	$ 7.75
		1000	$ 5.83

Description

General part information

392-038 Series

38 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Documents

Technical documentation and resources
