W7882-10PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 10P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 10P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W7882-10PG-300	W7882-10 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant	UV Resistant
Ingress Protection	IP69K, IP67	IP68, IP66, IP67, IP69K
Insert Material	-	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	10	10
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	150 VAC	150 - 300 VAC

CONN RCPT MALE 10POS SOLDER CUP

Part	Current Rating (Amps)	Connector Type	Backshell Material, Plating	Orientation	Contact Material	Voltage Rating	Color	Applications	Shielding	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Feature	Ingress Protection	Number of Positions	Fastening Type	Features	Insert Material
Conxall/Switchcraft W7882-10PG-P-300	Varies by Wire Gauge	Male Pins, Receptacle	Thermoplastic	Keyed	Copper Alloy	300 VAC	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Plastic	85 °C	-40 °C	Gold	Bulkhead - Front Side Nut	IP66, IP67, IP68	10	Bayonet Lock	UV Resistant	Thermoplastic
Conxall/Switchcraft W7882-10PG-300	Varies by Wire Gauge	Male Pins, Receptacle	Thermoplastic	Keyed	Copper Alloy	150 VAC	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Plastic			Gold	Bulkhead - Front Side Nut	IP67, IP69K	10	Bayonet Lock	UV Resistant
Conxall/Switchcraft W7882-10SG-300	Varies by Wire Gauge	Receptacle, Female Sockets	Thermoplastic	Keyed	Copper Alloy	150 VAC	Black	Automotive, Communication Systems, Instrumentation	Unshielded	Plastic			Gold	Bulkhead - Front Side Nut	IP67, IP69K	10	Bayonet Lock	UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

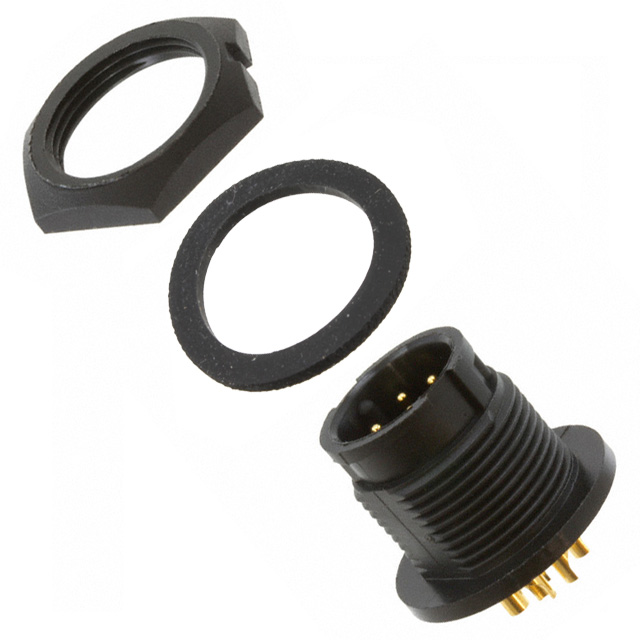

10 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

No documents available
