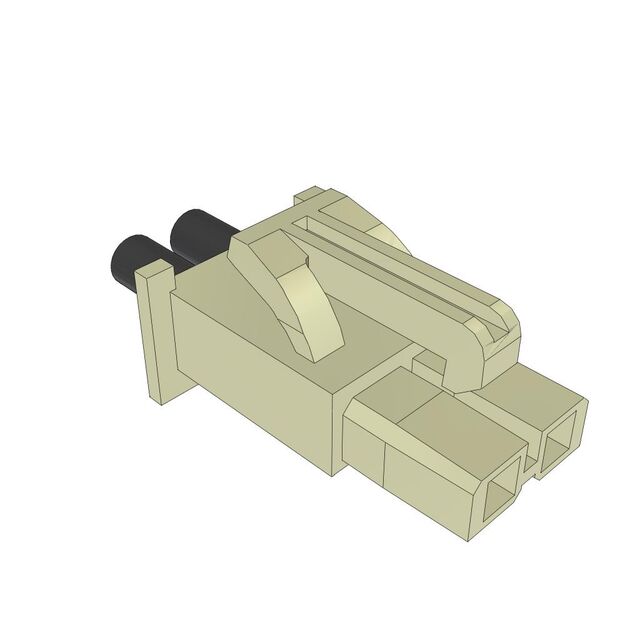

PMSS-02-16-K-03.00-S

Active

Samtec Inc.

.165" POWER MATE SINGLE ROW DIS

Search across all available documentation for this part.

Active

Samtec Inc.

.165" POWER MATE SINGLE ROW DIS

Technical Specifications

Parameters and characteristics for this part

Specification	PMSS-02-16-K-03.00-S

Cable Termination	Crimp
Connector Type	Socket to Individual Wire Leads
Contact Finish	Tin
Features	Polarizing Key
Length	3 "
Length	76.2 mm
Length	0.25 ft
Number of Positions	2
Number of Rows	1
Pitch - Connector [x]	4.19 mm
Pitch - Connector [x]	0.165 in
Shielding	Unshielded

Rectangular Cable Assemblies .165" Power Mate Single Row Discrete Wire Cable Assembly, Socket

Part	Length	Length	Length	Connector Type	Number of Rows	Cable Termination	Number of Positions	Pitch - Connector [x]	Pitch - Connector [x]	Contact Finish	Shielding	Features
Samtec Inc. PMSS-02-16-K-03.00-S	3 "	76.2 mm	0.25 ft	Socket to Individual Wire Leads	1	Crimp	2	4.19 mm	0.165 in	Tin	Unshielded	Polarizing Key
Samtec Inc. PMSS-04-18-K-04.00-D-LUS				Socket to Socket	1	Crimp	4	4.19 mm	0.165 in	Tin	Unshielded	Polarizing Key
Samtec Inc. PMSS-02-24-K-20.00-S		508 mm	1.67 ft	Socket to Individual Wire Leads	1	Crimp	2	4.19 mm	0.165 in	Tin	Unshielded	Polarizing Key
Samtec Inc. PMSS-02-16-K-26.00-S				Socket to Individual Wire Leads	1	Crimp	2	4.19 mm	0.165 in	Tin	Unshielded	Polarizing Key
Samtec Inc. PMSS-02-206-K-07.00-S				Socket to Individual Wire Leads	1	Crimp	2	4.19 mm	0.165 in	Tin	Unshielded	Polarizing Key
Samtec Inc. PMSS-08-18-K-10.00-D-LDS				Socket to Socket	1	Crimp	8	4.19 mm	0.165 in	Tin	Unshielded	Polarizing Key

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rectangular Cable Assemblies .165" Power Mate Single Row Discrete Wire Cable Assembly, Socket
